W08 - Single Phase 1.5 AMPS. Silicon Bridge Rectifiers

Taiwan Semiconductor

Datasheet Details

Part number	W08
Manufacturer	Taiwan Semiconductor ↗
File Size	149.13 KB
Description	Single Phase 1.5 AMPS. Silicon Bridge Rectifiers
Datasheet	W08-TaiwanSemiconductor.pdf

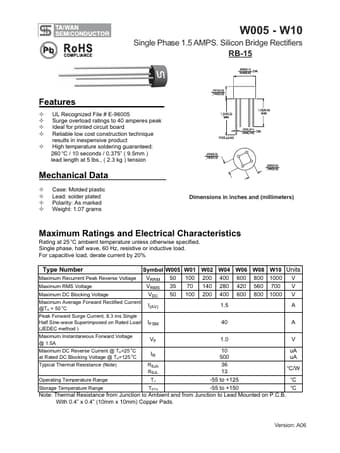

UL Recognized File # E-96005 Surge overload ratings to 40 amperes peak Ideal for printed circuit board Reliable low cost construction technique results in inexpensive product High temperature soldering guaranteed: 260 oC / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Mechanical Data Case: Molded plastic Lead: solder plated Polarity: As marked Weight: 1.07 grams Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25 oC ambie.
