UG2004PT - 200V High Power Density Ultra Fast Rectifier

Taiwan Semiconductor

The UG2004PT by Taiwan Semiconductor is a 200V High Power Density Ultra Fast Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

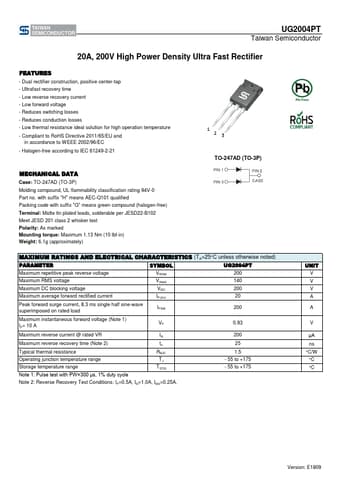

UG2004PT 200V High Power Density Ultra Fast Rectifier by Taiwan Semiconductor - Datasheet Preview — Official preview page of the **UG2004PT** 200V High Power Density Ultra Fast Rectifier datasheet (Taiwan Semiconductor).

Datasheet Details

Part number	UG2004PT
Manufacturer	Taiwan Semiconductor
File Size	414.81 KB
Description	200V High Power Density Ultra Fast Rectifier
Datasheet	UG2004PT-TaiwanSemiconductor.pdf
Additional preview pages of the UG2004PT datasheet.

UG2004PT Product details

Description

AEC-Q101 qualified Green compound RATINGS AND CHARACTERISTICS CURVES (TA=25°C unless otherwise noted) FIG.1 MAXIMUM FORWARD CURRENT DERATING CURVE 25 20 15 FIG.2 TYPICAL REVERSE CHARACTERISTICS 100 10 1 TJ=125°C INSTANTANEOUS REVERSE CURRENT (μA) AVERAGE FORWARD CURRENT (A) 10 RESISTIVE OR INDUCTIVELOAD 5 WITH HEATSINK 0 0 50 100 CASE TEMPERATURE (oC) 0.1 TJ=75°C 0.01 150 0.001 TJ=25°C 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) PEAK FORWARD SUR

Features

- Dual rectifier construction, positive center-tap - Ultrafast recovery time - Low reverse recovery current - Low forward voltage - Reduces switching losses - Reduces conduction losses - Low thermal resistance ideal solution for high operation temperature - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 12 3 TO-247AD (TO-3P).
