TST20H150CW, TST20H100CW Trench Schottky Rectifier

TST20H150CW Description

TST20H100CW thru TST20H200CW Taiwan Semiconductor Trench Schottky Rectifier .
Green compound RATINGS AND CHARACTERISTICS CURVES (TA = 25oC unless otherwise noted) AVERAGE FORWARD CURRENT (A) FIG.

TST20H150CW Features

* - Patented Trench Schottky technology - Excellent high temperature stability - Low forward voltage - Low power loss/ High efficiency - High forward surge capability - Compliant to RoHS directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition TO

TST20H150CW Applications

* Trench Schottky barrier rectifier are designed for high frequency miniature switched mode power supplies such as adapters, lighting and on-board DC/DC converters. MECHANICAL DATA Case: TO-220AB Molding compound meets UL 94 V-0 flammability rating Packing code with suffix "G" means green compound (h

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TST20H150CW, TST20H100CW. Please refer to the document for exact specifications by model.

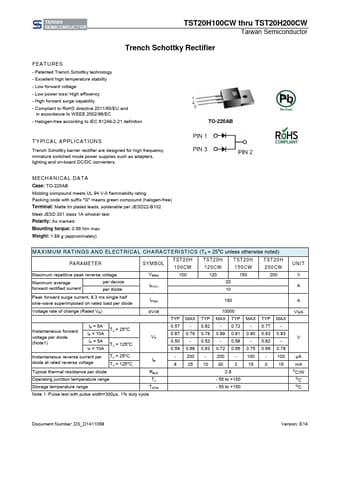

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TST20H150CW, TST20H100CW
Manufacturer
Taiwan Semiconductor
File Size
206.29 KB
Datasheet
TST20H100CW-TaiwanSemiconductor.pdf
Description
Trench Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: TST20H150CW, TST20H100CW.
Please refer to the document for exact specifications by model.
