TS78L15, TS78L03 3-Terminal 100mA Positive Voltage Regulator

Taiwan Semiconductor

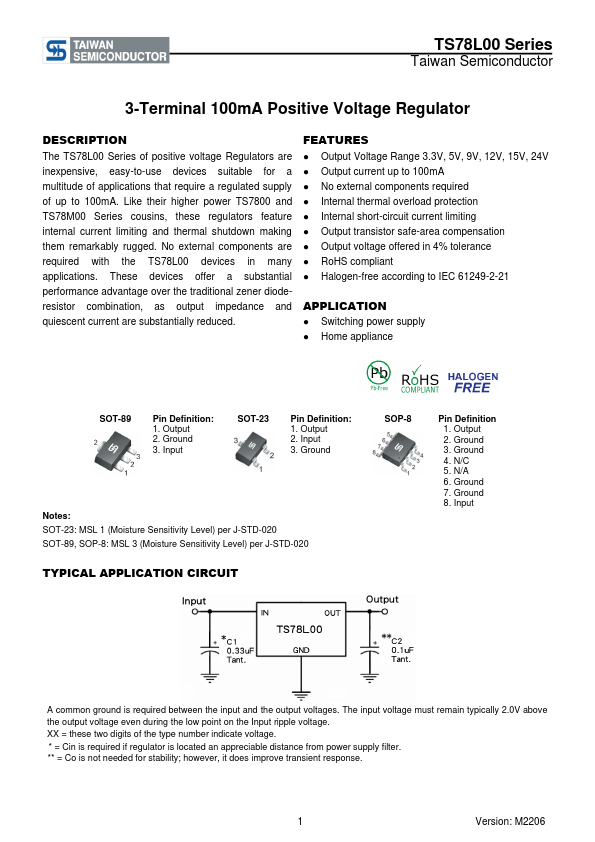

Description

TS78L00 Series Taiwan Semiconductor 3-Terminal 100mA Positive Voltage Regulator .
The TS78L00 Series of positive voltage Regulators are inexpensive, easy-to-use devices suitable for a multitude of applications that require a regulat.

📥 Download Datasheet

TS78L15 Datasheet Preview — This datasheet PDF includes multiple part numbers: TS78L15, TS78L03. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: TS78L15, TS78L03
Manufacturer: Taiwan Semiconductor
File Size: 769.26 KB
Datasheet: TS78L03-TaiwanSemiconductor.pdf
Description: 3-Terminal 100mA Positive Voltage Regulator
Note: This datasheet PDF includes multiple part numbers: TS78L15, TS78L03.
Please refer to the document for exact specifications by model.

Features

* Output Voltage Range 3.3V, 5V, 9V, 12V, 15V, 24V
* Output current up to 100mA
* No external components required
* Internal thermal overload protection
* Internal short-circuit current limiting
* Output transistor safe-area compensation
* Output voltage offered in 4% tol
