TS50P06G, TS50P05G 600V - 1000V Standard Bridge Rectifier

Taiwan Semiconductor

Description

TS50P05G * TS50P07G Taiwan Semiconductor 50A, 600V - 1000V Standard Bridge Rectifier .
only.

📥 Download Datasheet

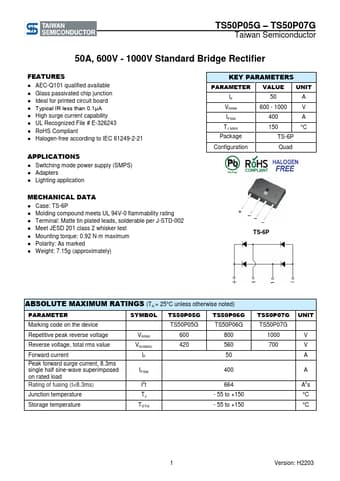

TS50P06G Datasheet Preview — This datasheet PDF includes multiple part numbers: TS50P06G, TS50P05G. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: TS50P06G, TS50P05G
Manufacturer: Taiwan Semiconductor
File Size: 524.62 KB
Datasheet: TS50P05G-TaiwanSemiconductor.pdf
Description: 600V - 1000V Standard Bridge Rectifier
Note: This datasheet PDF includes multiple part numbers: TS50P06G, TS50P05G.
Please refer to the document for exact specifications by model.

Features

* AEC-Q101 qualified available
* Glass passivated chip junction
* Ideal for printed circuit board
* Typical IR less than 0.1μA
* High surge current capability
* UL Recognized File # E-326243
* RoHS Compliant

Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM IFSM TJ MAX Package 50 A 600 - 1000 V 400 A 150 °C TS-6P Configuration Quad MECHANICAL DATA
* Case: TS-6P
* Molding compound meets UL 94V-0 flammabili
