TS35P05G Standard Bridge Rectifier

TS35P05G Description

TS35P05G * TS35P07G Taiwan Semiconductor 35A, 600V - 1000V Standard Bridge Rectifier .
only.

TS35P05G Features

* AEC-Q101 qualified available
* Glass passivated chip junction
* Ideal for printed circuit board
* Typical IR less than 0.1μA
* High surge current capability
* UL Recognized File # E-326243
* RoHS Compliant

TS35P05G Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM IFSM TJ MAX Package 35 A 600 - 1000 V 350 A 150 °C TS-6P Configuration Quad MECHANICAL DATA
* Case: TS-6P
* Molding compound meets UL 94V-0 flammabili

📥 Download Datasheet

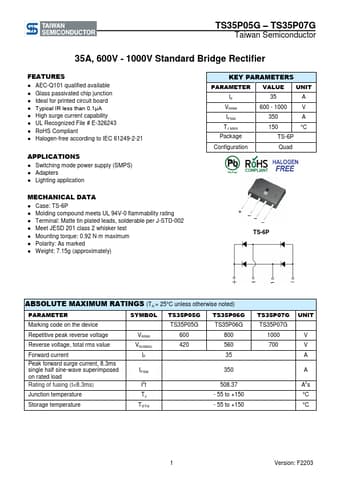

Preview of TS35P05G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TS35P05G
Manufacturer
Taiwan Semiconductor
File Size
526.08 KB
Datasheet
TS35P05G_TaiwanSemiconductor.pdf
Description
Standard Bridge Rectifier
