TS25P05G-K - 600V - 1000V Standard Bridge Rectifier

Description

only.

No license, express or implied, to any intellectual property rights is granted by this document.

Features

  • Glass passivated chip junction.
  • Ideal for printed circuit board.
  • Typical IR less than 0.1μA.
  • High surge current capability.
  • UL Recognized File # E-326243.
  • RoHS Compliant.
  • Halogen-free according to IEC 61249-2-21.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TS25P05G 25A Single-Phase Glass Passivated Bridge Rectifier Silicon Standard
TS25P01G 25A Single-Phase Glass Passivated Bridge Rectifier Silicon Standard
TS25P02G 25A Single-Phase Glass Passivated Bridge Rectifier Silicon Standard
TS25P03G 25A Single-Phase Glass Passivated Bridge Rectifier Silicon Standard
TS25P04G 25A Single-Phase Glass Passivated Bridge Rectifier Silicon Standard

Other Datasheets by Taiwan Semiconductor

Part Number Description
TS25P05G Glass Passivated Bridge Rectifiers
TS25P01G Glass Passivated Bridge Rectifiers
TS25P02G Glass Passivated Bridge Rectifiers
TS25P03G Glass Passivated Bridge Rectifiers
TS25P04G Glass Passivated Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

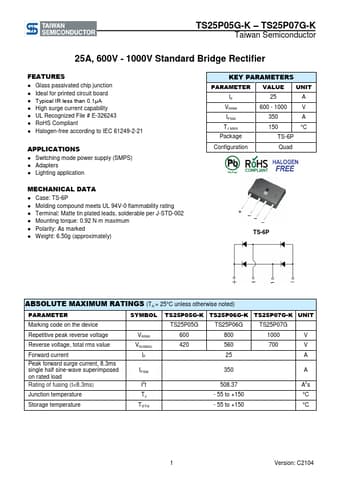

TS25P05G-K – TS25P07G-K Taiwan Semiconductor 25A, 600V - 1000V Standard Bridge Rectifier FEATURES ● Glass passivated chip junction ● Ideal for printed circuit board ● Typical IR less than 0.1μA ● High surge current capability ● UL Recognized File # E-326243 ● RoHS Compliant ● Halogen-free according to IEC 61249-2-21 APPLICATIONS ● Switching mode power supply (SMPS) ● Adapters ● Lighting application KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM IFSM TJ MAX Package 25 A 600 - 1000 V 350 A 150 °C TS-6P Configuration Quad MECHANICAL DATA ● Case: TS-6P ● Molding compound meets UL 94V-0 flammability rating ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Mounting torque: 0.92 N⋅m maximum ● Polarity: As marked ● Weight: 6.
