TS19378CS, TS19378 2A Buck (Step-down) WLED Driver

TS19378CS Description

TS19378 2A Buck (Step-down) WLED Driver SOP-8EP Pin Definition: 1.EN/SS 8.COMP 2.GND 7.FB 3.VGATE 6.OVP 4.Vcc 5.SW General .
The TS19378 is a high voltage step-down converter designed for driving up to 10 series white LEDs from a 40V system input.

TS19378CS Features

* Input Voltage Range 8V~40V Output voltage up to 38V 2A Switch Output Current Duty ratio: 0%~100% PWM control 300kHz Switching Frequency Enable/Disable Functions Soft Start Time Control Current limit and Thermal Shutdown Short Circuit Protec

TS19378CS Applications

* Connecting a resistor (R2) and a capacitor (C7) from COMP pin to GND. Please refer the application circuit table to design. EN/SS This pin can be supplied shutdown or soft start function. It is inside pull high function. For normal application, the pin must be connected a capacitor to ground. Ther

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TS19378CS, TS19378. Please refer to the document for exact specifications by model.

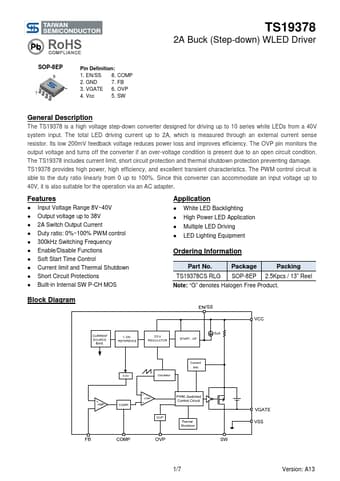

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TS19378CS, TS19378
Manufacturer
Taiwan Semiconductor
File Size
131.92 KB
Datasheet
TS19378-TaiwanSemiconductor.pdf
Description
2A Buck (Step-down) WLED Driver
Note
This datasheet PDF includes multiple part numbers: TS19378CS, TS19378.
Please refer to the document for exact specifications by model.
