TS1910A 680kHz/1.2MHz High Voltage Boost Converter

TS1910A Description

TS1910A 680kHz/1.2MHz High Voltage Boost Converter SOP-8EP Pin Definition: 1.COMP 8.SS 2.FB 7.FREQ 3.EN 6.VCC 4.GND 5.LX General .
The TS1910A is a high performance, high efficiency step up DC-DC Converter with integrated 2A.

TS1910A Features

* 2.6V to 5.5V operating input voltage range Adjustable output voltage range up to 27V Up to 3A output switch current 680K/1.2MHz Selectable Switching Frequency Programmable soft-start function External Compensation Network Current limit and Therma

TS1910A Applications

* R8 is a suggested a value by 10~30KΩ. Place the resistor-divider as close to the IC as possible to reduce the noise sensitivity. Soft Start Capacitor The soft-start function begins from SS pin Voltage=0V to VCC with a 7uA (typ. ) constant current charging to the softstart capacitor, so the capacito

📥 Download Datasheet

Preview of TS1910A PDF

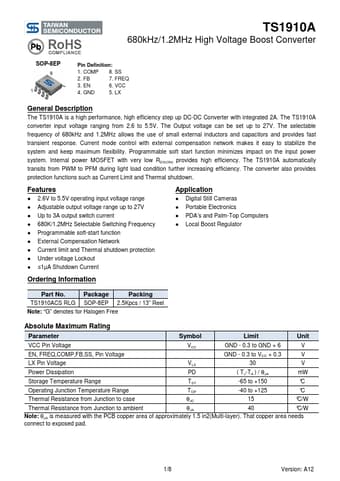

datasheet Preview Page 2 datasheet Preview Page 3
