TS1431 Adjustable Precision Shunt Regulator

TS1431 Description

TS1431 Adjustable Precision Shunt Regulator TO-92 Pin Definition: 1.Cathode 2.Anode 3.Reference SOT-23 Pin Definition: 1.Cathode 2.Reference 3..
TS1431 series integrated circuits are three-terminal programmable shunt regulator diodes.

TS1431 Features

* Precision Reference Voltage TS1431
* 2.495V±2% TS1431A
* 2.495V±1% TS1431B
* 2.495V±0.5% Equivalent Full Range Temp. Coefficient: 50ppm/ ºC Programmable Output Voltage up to 36V Fast Turn-On Response Sink Current Capability of 1~100mA Low Dynamic Output Impedance: 0.2Ω

📥 Download Datasheet

Preview of TS1431 PDF

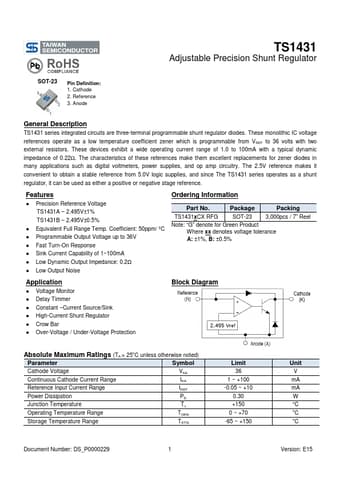

datasheet Preview Page 2 datasheet Preview Page 3
