TS13001 High Voltage NPN Transistor

TS13001 Description

www.DataSheet4U.com TS13001 High Voltage NPN Transistor BVCEO = 400V BVCBO = 500V Ic = 0.1A VCE (SAT), = 0.5V @ Ic / Ib = 50mA / 10mA Pin assignment.

TS13001 Features

* — High voltage. Ordering Information Part No. TS13001CT Packing Bulk Package TO-92 — High speed switching Structure — Silicon triple diffused type. — NPN silicon transistor Absolute Maximum Rating (Ta = 25 oC Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collecto

📥 Download Datasheet

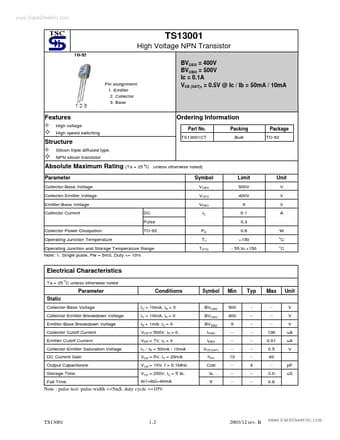

Preview of TS13001 PDF
datasheet Preview Page 2

Datasheet Details

Part number
TS13001
Manufacturer
Taiwan Semiconductor
File Size
65.47 KB
Datasheet
TS13001_TaiwanSemiconductor.pdf
Description
High Voltage NPN Transistor
