SRT115, SRT12 (SRT12 - SRT115) Schottky Barrier Rectifiers

Taiwan Semiconductor

Description

www.DataSheet4U.com SRT12 - SRT115 1.0 AMP.Schottky Barrier Rectifiers TS-1 .

📥 Download Datasheet

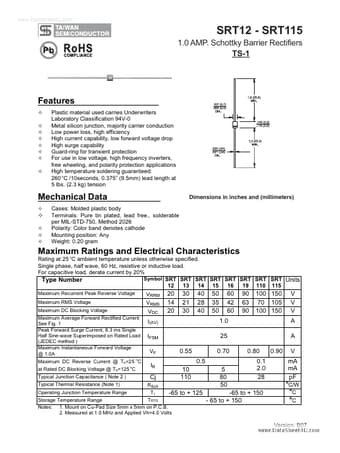

SRT115 Datasheet Preview — This datasheet PDF includes multiple part numbers: SRT115, SRT12. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SRT115, SRT12
Manufacturer: Taiwan Semiconductor
File Size: 186.64 KB
Datasheet: SRT12_TaiwanSemiconductor.pdf
Description: (SRT12 - SRT115) Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SRT115, SRT12.
Please refer to the document for exact specifications by model.

Features

* Plastic material used carries Underwriters Laboratory Classification 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low forward voltage drop High surge capability Guard-ring for transient protection For use in low voltage, high freq

Applications

* High temperature soldering guaranteed: 260 oC /10seconds, 0.375” (9.5mm) lead length at 5 lbs. (2.3 kg) tension Mechanical Data Cases: Molded plastic body Terminals: Pure tin plated, lead free. , solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode Mounting position: Any Weig
