SMF22A, SMF5.0A Datasheet - Taiwan Semiconductor

SMF22A 5V - 100V Surface Mount Transient Voltage Suppressor

SMF22A Features

* Photo Glass passivated junction

* Low power loss, high efficiency

* Ideal for automated placement

* Excellent clamping capability

* Typical IR less than 1μA above 10V

* 200 watts peak pulse power capability with a 10 / 1000 μs waveform (VWM ≧ 60V, PPPM = 175W)

* Complia

SMF5.0A-TaiwanSemiconductor.pdf

This datasheet PDF includes multiple part numbers: SMF22A, SMF5.0A. Please refer to the document for exact specifications by model.

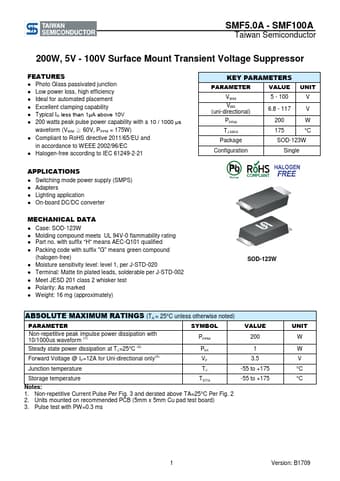

SMF22A Datasheet Preview Page 2 SMF22A Datasheet Preview Page 3

Datasheet Details

Part number:

SMF22A, SMF5.0A

Manufacturer:

Taiwan Semiconductor

File Size:

282.54 KB

Description:

5v - 100v surface mount transient voltage suppressor.

Note:

This datasheet PDF includes multiple part numbers: SMF22A, SMF5.0A.
Please refer to the document for exact specifications by model.
