SMDJ10AH Surface Mount Transient Voltage Suppressor

SMDJ10AH Description

SMDJ10AH * SMDJ100AH Taiwan Semiconductor 3000W, 10V - 100V Surface Mount Transient Voltage Suppressor .

SMDJ10AH Features

* AEC-Q101 qualified
* Ideal for automated placement
* Glass passivated chip junction
* Excellent clamping capability
* Meets ISO 7637-2 (Pulse 1/2a/2b/3a/3b)
* Fast response time: Typically less than 1.0ps
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS C

SMDJ10AH Applications

* Immunization of sensitive devices in telecommunications, consumer electronics, and industrial equipment from electrostatic discharge (ESD) and transient voltages induced by load switching and lightning. MECHANICAL DATA
* Case: DO-214AB (SMC)
* Molding compound meets UL 94V-0 flammabil

📥 Download Datasheet

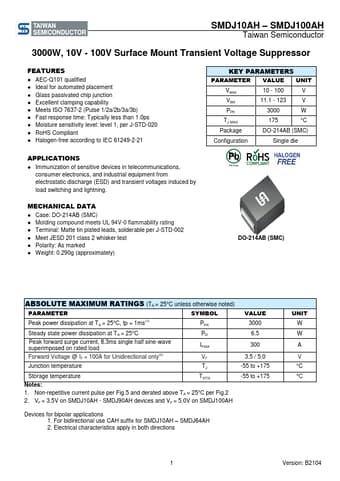

Preview of SMDJ10AH PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMDJ10AH
Manufacturer
Taiwan Semiconductor
File Size
452.04 KB
Datasheet
SMDJ10AH-TaiwanSemiconductor.pdf
Description
Surface Mount Transient Voltage Suppressor
