SMBJ78A - Surface Mount Transient Voltage Suppressor

Download the SMBJ78A datasheet PDF. This datasheet also covers the SMBJ5.0 variant, as both devices belong to the same surface mount transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Ideal for automated placement.
  • Glass passivated junction.
  • Excellent clamping capability.
  • Fast response time: Typically less than 1.0ps.
  • Typical IR less than 1μA above 10V.
  • Meets ISO 7637-2 (Pulse 1/2a/2b/3a/3b).
  • Moisture sensitivity level: level 1, per J-STD-020.
  • RoHS Compliant.
  • Halogen-free according to IEC 61249-2-21.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMBJ5.0-TaiwanSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SMBJ78A TRANSIENT VOLTAGE SUPPRESSOR AiT Semiconductor
SMBJ78A TVS Diode BOURNS
SMBJ78A SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS LITE-ON
SMBJ78A 600 Watt Transient Voltage Suppressors Fairchild Semiconductor
SMBJ78A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR EIC

Other Datasheets by Taiwan Semiconductor

Part Number Description
SMBJ78 Surface Mount Transient Voltage Suppressor
SMBJ7.0 Surface Mount Transient Voltage Suppressor
SMBJ7.0A Surface Mount Transient Voltage Suppressor
SMBJ7.5 Surface Mount Transient Voltage Suppressor
SMBJ7.5A Surface Mount Transient Voltage Suppressor

Full PDF Text Transcription

Click to expand full text

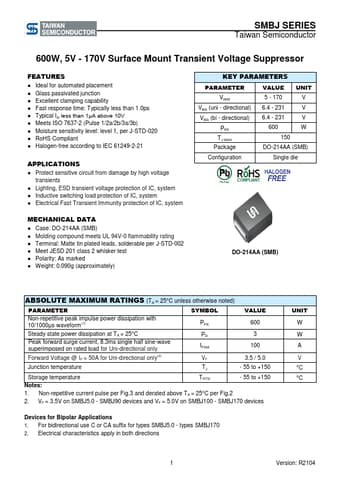

SMBJ SERIES Taiwan Semiconductor 600W, 5V - 170V Surface Mount Transient Voltage Suppressor FEATURES ● Ideal for automated placement ● Glass passivated junction ● Excellent clamping capability ● Fast response time: Typically less than 1.
