SMBJ14 - Surface Mount Transient Voltage Suppressor

Product Overview

Taiwan Semiconductor

📥 Download Datasheet

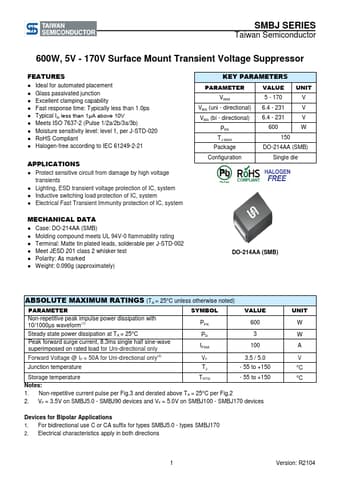

SMBJ14 Surface Mount Transient Voltage Suppressor by Taiwan Semiconductor - Datasheet Preview — Datasheet preview – SMBJ14

Datasheet Details

Part number	SMBJ14
Manufacturer	Taiwan Semiconductor
File Size	456.12 KB
Description	Surface Mount Transient Voltage Suppressor
Datasheet	SMBJ14 Datasheet
Note	This datasheet PDF includes multiple part numbers: SMBJ14, SMBJ5.0. Please refer to the document for exact specifications by model.
Additional preview pages of the SMBJ14 datasheet.

Product details

Features

Ideal for automated placement.
Glass passivated junction.
Excellent clamping capability.
Fast response time: Typically less than 1.0ps.
Typical IR less than 1μA above 10V.
Meets ISO 7637-2 (Pulse 1/2a/2b/3a/3b).
Moisture sensitivity level: level 1, per J-STD-020.
RoHS Compliant.
Halogen-free according to IEC 61249-2-21.
