SMAJ78 - Surface Mount Transient Voltage Suppressor

Product Overview

Taiwan Semiconductor

📥 Download Datasheet

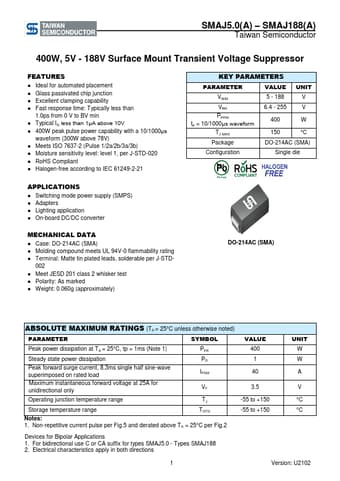

SMAJ78 Surface Mount Transient Voltage Suppressor by Taiwan Semiconductor - Datasheet Preview — Datasheet preview – SMAJ78

Datasheet Details

Part number	SMAJ78
Manufacturer	Taiwan Semiconductor
File Size	520.82 KB
Description	Surface Mount Transient Voltage Suppressor
Datasheet	SMAJ78 Datasheet
Note	This datasheet PDF includes multiple part numbers: SMAJ78, SMAJ5.0. Please refer to the document for exact specifications by model.
Additional preview pages of the SMAJ78 datasheet.

Product details

Features

Ideal for automated placement.
Glass passivated chip junction.
Excellent clamping capability.
Fast response time: Typically less than 1.0ps from 0 V to BV min.
Typical IR less than 1μA above 10V.
400W peak pulse power capability with a 10/1000μs waveform (300W above 78V).
Meets ISO 7637-2 (Pulse 1/2a/2b/3a/3b).
Moisture sensitivity level: level 1, per J-STD-020.
RoHS Compliant.
Halogen-free according to IEC 61249-2-21 KEY.
