SK515B, SK52B - Surface Mount Schottky Barrier Rectifier

Taiwan Semiconductor

📥 Download Datasheet

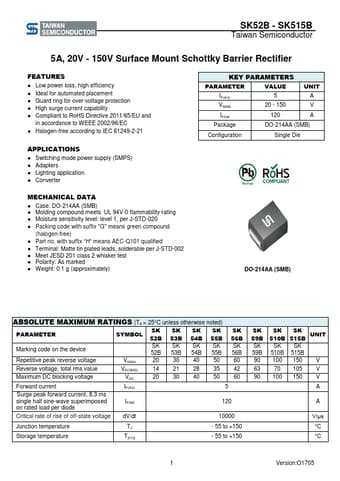

SK515B Datasheet Preview — This datasheet PDF includes multiple part numbers: SK515B, SK52B. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SK515B, SK52B
Manufacturer	Taiwan Semiconductor
File Size	263.51 KB
Description	Surface Mount Schottky Barrier Rectifier
Datasheet	SK52B-TaiwanSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: SK515B, SK52B. Please refer to the document for exact specifications by model.

SK515B Product details

Features

Low power loss, high efficiency.
Ideal for automated placement.
Guard ring for over-voltage protection.
High surge current capability.
Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC.
Halogen-free according to IEC 61249-2-21.
