SFT13, SFT11 - (SFT11 - SFT18) Super Fast Rectifiers

Name: SFT13
SKU: SFT13-664333

Taiwan Semiconductor

The SFT13 by Taiwan Semiconductor is a (SFT11 - SFT18) Super Fast Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	SFT13, SFT11
Manufacturer	Taiwan Semiconductor
File Size	84.54 KB
Description	(SFT11 - SFT18) Super Fast Rectifiers
Datasheet	SFT11_TaiwanSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: SFT13, SFT11. Please refer to the document for exact specifications by model.

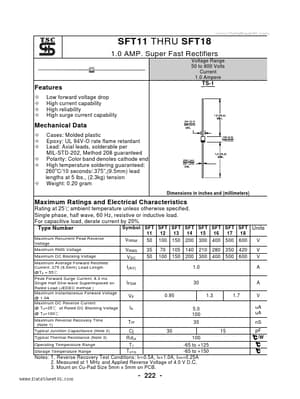

Additional preview pages of the SFT13 datasheet.

Low forward voltage drop High current capability High reliability High surge current capability TS-1 Mechanical Data Cases: Molded plastic Epoxy: UL 94V-O rate flame retardant Lead: Axial leads, solderable per MIL-STD-202, Method 208 guaranteed Polarity: Color band denotes cathode end High temperature soldering guaranteed: 260 oC/10 seconds/.375”,(9.5mm) lead lengths at 5 lbs. , (2.3kg) tension Weight: 0.20 gram Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characterist.
