SFR301 - 3.0 AMPS. Soft Fast Recovery Rectifiers

Features

  • Low forward voltage drop High current capability High reliability High surge current capability Fast switching for high efficiency Mechanical Data Cases: Molded plastic Epoxy: UL 94V-0 rate flame retardant Lead: Pure tin plated, Lead free. , solderable per MIL-STD-202, Method 208 guaranteed Polarity: Color band denotes cathode end High temperature soldering guaranteed: 260 oC /10 seconds/.375”,(9.5mm) lead lengths at 5 lbs. ,(2.3kg) tension Weight: 1.2 grams Dimensions in inches and (millimeters).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SFR301 SOFT FAST RECOVERY RECTIFIER MEI SEMI
SFR301 SOFT RECOVERY FAST SWITCHING RECTIFIER MIC
SFR301 3.0A SOFT FAST RECOVERY RECTIFIER Won-Top Electronics
SFR301 3.0 AMPS. SOFT FAST RECOVERY RECTIFIERS Jinan Gude Electronic Device
SFR301 (SFRxxx) Fast Recovery Rectifiers Sino-American Silicon

Other Datasheets by Taiwan Semiconductor

Part Number Description
SFR302 3.0 AMPS. Soft Fast Recovery Rectifiers
SFR303 3.0 AMPS. Soft Fast Recovery Rectifiers
SFR304 3.0 AMPS. Soft Fast Recovery Rectifiers
SFR305 3.0 AMPS. Soft Fast Recovery Rectifiers
SFR306 3.0 AMPS. Soft Fast Recovery Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

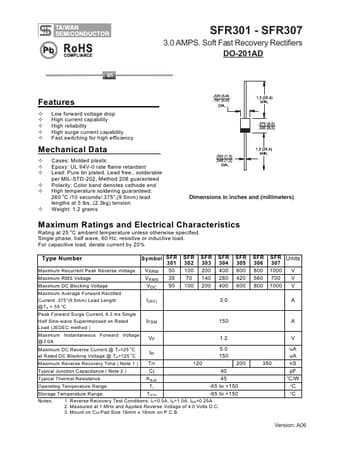

SFR301 - SFR307 3.0 AMPS. Soft Fast Recovery Rectifiers DO-201AD Features Low forward voltage drop High current capability High reliability High surge current capability Fast switching for high efficiency Mechanical Data Cases: Molded plastic Epoxy: UL 94V-0 rate flame retardant Lead: Pure tin plated, Lead free., solderable per MIL-STD-202, Method 208 guaranteed Polarity: Color band denotes cathode end High temperature soldering guaranteed: 260 oC /10 seconds/.375”,(9.5mm) lead lengths at 5 lbs.,(2.3kg) tension Weight: 1.2 grams Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
