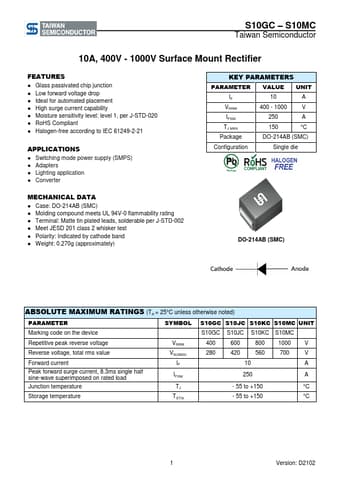

Description
S10GC * S10MC Taiwan Semiconductor 10A, 400V - 1000V Surface Mount Rectifier .
only.
Features
* Glass passivated chip junction
* Low forward voltage drop
* Ideal for automated placement
* High surge current capability
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant
Applications
* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* Converter
KEY PARAMETERS
PARAMETER VALUE UNIT
IF VRRM
10
A
400 - 1000
V
IFSM TJ MAX Package
250
A
150
°C
DO-214AB (SMC)
Configuration
Single die
MECHANICAL DATA
* Case: DO-214AB (SMC)
* M
