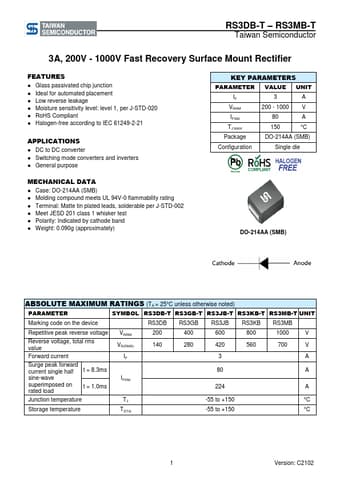

RS3DB-T * RS3MB-T Taiwan Semiconductor 3A, 200V - 1000V Fast Recovery Surface Mount Rectifier .
Features
* Glass passivated chip junction
* Ideal for automated placement
* Low reverse leakage
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant
Applications
* DC to DC converter
* Switching mode converters and inverters
* General purpose
KEY PARAMETERS
PARAMETER VALUE UNIT
IF
3
A
VRRM
200 - 1000 V
IFSM
80
A
TJ MAX
150
°C
Package
DO-214AA (SMB)
Configuration
Single die
MECHANICAL DATA
* Case: DO-214AA (SMB)
* Molding
