MBRF15150CT, MBRF1535CT - Dual Common Cathode Schottky Rectifier

The MBRF15150CT by Taiwan Semiconductor is a Dual Common Cathode Schottky Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

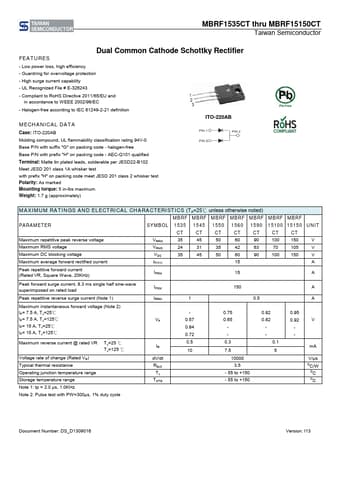

Official preview page of the MBRF15150CT Dual Common Cathode Schottky Rectifier datasheet (Taiwan Semiconductor).

Datasheet Details

Part number MBRF15150CT, MBRF1535CT
Manufacturer Taiwan Semiconductor
File Size 225.42 KB
Description Dual Common Cathode Schottky Rectifier
Datasheet download datasheet MBRF1535CT-TaiwanSemiconductor.pdf
Note This datasheet PDF includes multiple part numbers: MBRF15150CT, MBRF1535CT.
Please refer to the document for exact specifications by model.
Additional preview pages of the MBRF15150CT datasheet.

MBRF15150CT Product details

Description

G Green compound AEC-Q101 qualified RATINGS AND CHARACTERISTICS CURVES (TA=25℃ unless otherwise noted) AVERAGE FORWARD A CURRENT (A) FIG.1 FORWARD CURRENT DERATING CURVE 20 15 10 RESISTIVE OR 5 INDUCTIVELOAD WITH HEATSINK 0 50 60 70 80 90 100 110 120 130 140 150 CASE TEMPERATURE (oC) PEAK FORWARD SURGE CURRENT (A) FIG.2 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT PER LEG 150 8.3ms Single Half Sine Wave 125 JEDEC Method 100 75 50 25 0 1 10 NUMBER OF CYCLES AT 60 Hz 100 INSTANTANEO
