MBR3045CT-Y - Dual Common Cathode Schottky Rectifier

Taiwan Semiconductor

📥 Download Datasheet

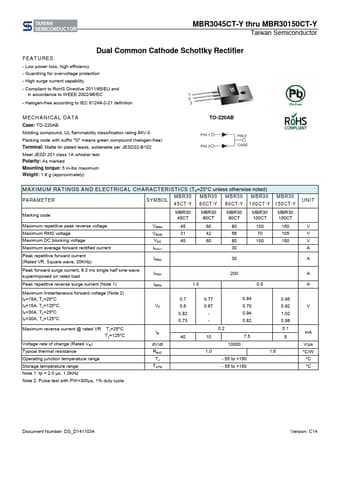

MBR3045CT-Y Datasheet Preview — Preview of MBR3045CT-Y PDF

Datasheet Details

Part number	MBR3045CT-Y
Manufacturer	Taiwan Semiconductor
File Size	197.29 KB
Description	Dual Common Cathode Schottky Rectifier
Datasheet	MBR3045CT-Y-TaiwanSemiconductor.pdf

MBR3045CT-Y Product details

Description

Green compound RATINGS AND CHARACTERISTICS CURVES (TA=25°C unless otherwise noted) AVERAGE FORWARD A CURRENT (A) FIG.1- FORWARD CURRENT DERATING CURVE 35 30 25 20 15 10 RESISTIVE OR INDUCTIVELOAD 5 WITH HEATSINK 0 0 50 100 150 CASE TEMPERATURE (oC) PEAK FORWARD SURGE CURRENT (A) FIG.2- MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT PER LEG 300 250 8.3ms Single Half Sine Wave 200 150 100 50 0 1 10 NUMBER OF CYCLES AT 60 Hz 100 IF-INSTANTANEOUS FORWARD CURRENT (A) FIG.3- TYPICAL INST

Features

- Low power loss, high efficiency - Guardring for overvoltage protection - High surge current capability - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition.
