D2SB10 - Standard Bridge Rectifier

Download the D2SB10 datasheet PDF. This datasheet also covers the D2SB05 variant, as both devices belong to the same standard bridge rectifier family and are provided as variant models within a single manufacturer datasheet.

Description

only.

No license, express or implied, to any intellectual property rights is granted by this document.

Features

  • AEC-Q101 qualified available.
  • Ideal for printed circuit board.
  • High case dielectric strength.
  • High surge current capability.
  • UL Recognized File # E-326243.
  • RoHS Compliant.
  • Halogen-free according to IEC 61249-2-21.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (D2SB05_TaiwanSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
D2SB10 SINGLE-PHASE BRIDGE RECTIFIER Sunmate
D2SB05 SINGLE-PHASE BRIDGE RECTIFIER Sunmate
D2SB20 SINGLE-PHASE BRIDGE RECTIFIER Sunmate
D2SB20 General Purpose Rectifiers Shindengen Electric Mfg.Co.Ltd
D2SB40 SINGLE-PHASE BRIDGE RECTIFIER Sunmate

Other Datasheets by Taiwan Semiconductor

Part Number Description
D2SB05 Standard Bridge Rectifier
D2SB20 Standard Bridge Rectifier
D2SB40 Standard Bridge Rectifier
D2SB60 Standard Bridge Rectifier
D2SB80 Standard Bridge Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

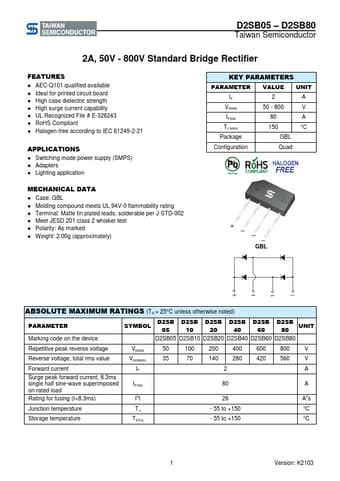

D2SB05 – D2SB80 Taiwan Semiconductor 2A, 50V - 800V Standard Bridge Rectifier FEATURES ● AEC-Q101 qualified available ● Ideal for printed circuit board ● High case dielectric strength ● High surge current capability ● UL Recognized File # E-326243 ● RoHS Compliant ● Halogen-free according to IEC 61249-2-21 APPLICATIONS ● Switching mode power supply (SMPS) ● Adapters ● Lighting application KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM 2 A 50 - 800 V IFSM TJ MAX Package 80 A 150 °C GBL Configuration Quad MECHANICAL DATA ● Case: GBL ● Molding compound meets UL 94V-0 flammability rating ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: As marked ● Weight: 2.
