BAT43W, BAT42W - 200mW Surface Mount Schottky Barrier Diode

Taiwan Semiconductor

Datasheet Details

Part number	BAT43W, BAT42W
Manufacturer	Taiwan Semiconductor ↗
File Size	182.78 KB
Description	200mW Surface Mount Schottky Barrier Diode

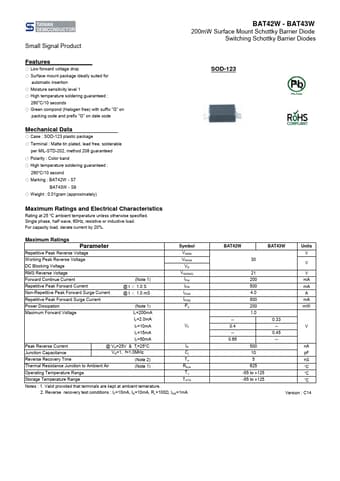

Datasheet	BAT42W-TaiwanSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: BAT43W, BAT42W. Please refer to the document for exact specifications by model.

◇ Low forward voltage drop ◇ Surface mount package ideally suited for automatic insertion ◇ Moisture sensitivity level 1 ◇ High temperature soldering guaranteed : 260oC/10 seconds ◇ Green compond (Halogen free) with suffix "G" on packing code and prefix "G" on date code Mechanical Data ◇ Case : SOD-123 plastic package ◇ Terminal : Matte tin plated, lead free, solderable per MIL-STD-202, method 208 guaranteed ◇ Polarity : Color band ◇ High temperature soldering guaranteed : 260oC/10 second ◇ Mark.
