BAS20 - Surface Mount Fast Switching Diode

This page provides the datasheet information for the BAS20, a member of the BAS19 Surface Mount Fast Switching Diode family.

Datasheet Summary

Description

only.

No license, express or implied, to any intellectual property rights is granted by this document.

Features

  • Low power loss, high efficiency.
  • Ideal for automated placement.
  • High surge current capability.
  • Moisture sensitivity level: level 1, per J-STD-020.
  • RoHS Compliant.
  • Halogen-free according to IEC 61249-2-21.

📥 Download Datasheet

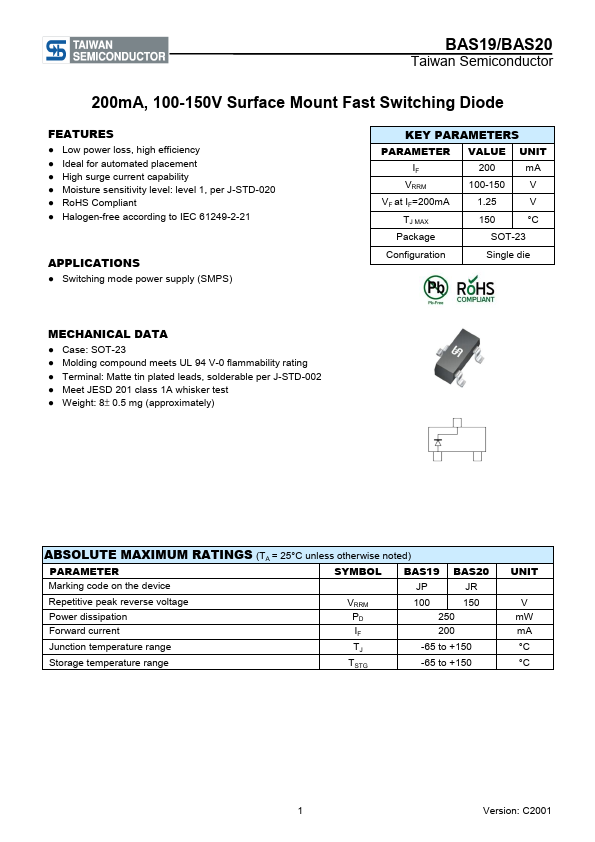

Datasheet preview – BAS20

Datasheet Details

Part number BAS20
Manufacturer Taiwan Semiconductor
File Size 282.10 KB
Description Surface Mount Fast Switching Diode
Datasheet download datasheet BAS20 Datasheet

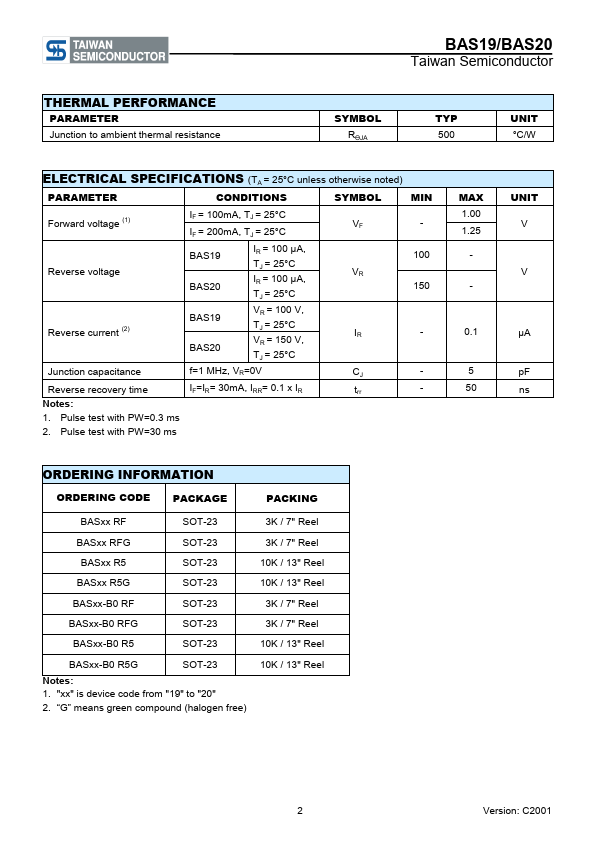

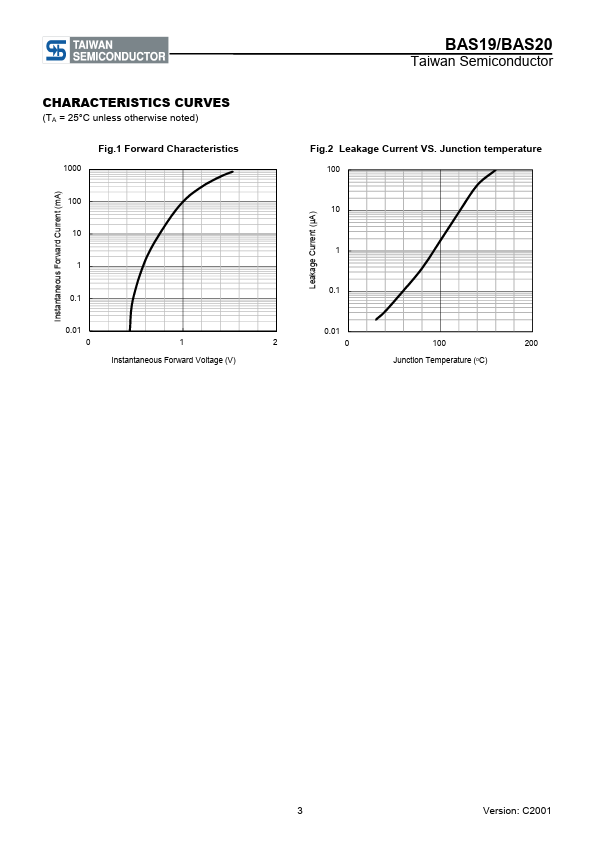

Additional preview pages of the BAS20 datasheet.

📁 Similar Datasheet

  • BAS20 - SURFACE MOUNT SWITCHING DIODE (DC COMPONENTS)
  • BAS20 - SWITCHING DIODE (Sangdest Microelectronics)
  • BAS20 - Plastic-Encapsulate Diodes (Eris)
  • BAS20 - SURFACE-MOUNT FAST SWITCHING DIODE (DIODES)
  • BAS20 - Small Signal Switching Diodes (Vishay)
  • BAS20 - Surface mount switching diode (GME)
  • BAS20 - Silicon Epitaxial Planar Diodes (JGD)
  • BAS20 - General Purpose High Voltage Diode (Fairchild Semiconductor)
  • BAS20 - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)
  • BAS20 - Three Terminals SMD Switching Diodes (TAITRON)
Other Datasheets by Taiwan Semiconductor
  • BAS20W - Switching Diode
  • BAS21 - 225mW SMD Switching Diode
  • BAS21A - 225mW SMD Switching Diode
  • BAS21C - 225mW SMD Switching Diode
  • BAS21S - 225mW SMD Switching Diode
  • BAS21W - Switching Diode
  • BAS116 - 75V Switching SMD Diode
  • BAS16 - 75V Switching Diode

Full PDF Text Transcription

Click to expand full text
BAS19/BAS20 Taiwan Semiconductor 200mA, 100-150V Surface Mount Fast Switching Diode FEATURES ● Low power loss, high efficiency ● Ideal for automated placement ● High surge current capability ● Moisture sensitivity level: level 1, per J-STD-020 ● RoHS Compliant ● Halogen-free according to IEC 61249-2-21 APPLICATIONS ● Switching mode power supply (SMPS) KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM 200 mA 100-150 V VF at IF=200mA 1.25 V TJ MAX 150 °C Package SOT-23 Configuration Single die MECHANICAL DATA ● Case: SOT-23 ● Molding compound meets UL 94 V-0 flammability rating ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 1A whisker test ● Weight: 8± 0.
