BA157G - Glass Passivated Fast Recovery Rectifiers

General Description

only.

No license, express or implied, to any intellectual property rights is granted by this document.

Key Features

  • AEC-Q101 qualified available.
  • Glass passivated chip junction.
  • High current capability, Low VF.
  • High reliability.
  • High surge current capability.
  • Low power loss, high efficiency.
  • RoHS Compliant.
  • Halogen-free according to IEC 61249-2-21.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BA157GP 1 Amp Glass Passivated Fast Recovery Rectifier Fagor
BA157GP Fast Switching Plastic Rectifier Vishay Siliconix
BA157 FAST SWITCHING PLASTIC RECTIFIER Pan Jit International Inc.
BA157 FAST SWITCHING PLASTIC RECTIFIER TRSYS
BA157 TECHNICAL SPECIFICATIONS OF FAST RECOVERY RECTIFIER Dc Components

Other Datasheets by Taiwan Semiconductor

Part Number Description
BA157 Fast Recovery Rectifiers
BA158 Fast Recovery Rectifiers
BA158G Glass Passivated Fast Recovery Rectifiers
BA159 Fast Recovery Rectifiers
BA159G Glass Passivated Fast Recovery Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

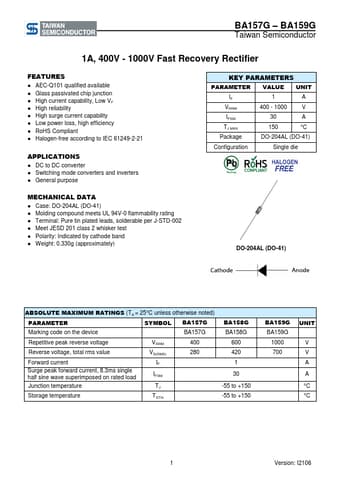

BA157G – BA159G Taiwan Semiconductor 1A, 400V - 1000V Fast Recovery Rectifier FEATURES ● AEC-Q101 qualified available ● Glass passivated chip junction ● High current capability, Low VF ● High reliability ● High surge current capability ● Low power loss, high efficiency ● RoHS Compliant ● Halogen-free according to IEC 61249-2-21 APPLICATIONS ● DC to DC converter ● Switching mode converters and inverters ● General purpose KEY PARAMETERS PARAMETER VALUE UNIT IF 1 A VRRM 400 - 1000 V IFSM 30 A TJ MAX 150 °C Package DO-204AL (DO-41) Configuration Single die MECHANICAL DATA ● Case: DO-204AL (DO-41) ● Molding compound meets UL 94V-0 flammability rating ● Terminal: Pure tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: Indicated by cat
