2SC5658-Q - NPN Transistor

Download the 2SC5658-Q datasheet PDF (2SC5658-R included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for npn transistor.

Features

  • Epitaxial planar die construction Surface device type mounting Moisture sensitivity level 1 Low Cob Pb free version and RoHS compliant Green compound (Halogen free) with suffix "G" on packing code and prefix "G" on date code Complements the 2SA2029 Mechanical Data Case : SOT-723 small outline plastic package per MIL-STD-202, Method 208 guaranteed High temperature soldering guaranteed: 260℃/10s 1. BASE 2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2SC5658-R-TaiwanSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • 2SC5658-C - NPN Plastic Encapsulated Transistor (SeCoS)
  • 2SC5658-HF - NPN Transistor (Comchip)
  • 2SC5658 - General purpose small signal amplifier (ROHM)
  • 2SC5658 - NPN Transistor (SeCoS)
  • 2SC5658FHA - General purpose transistor (Rohm)
  • 2SC5658M3T5G - NPN Silicon General Purpose Amplifier Transistor (ON Semiconductor)
  • 2SC5658RM3T5G - NPN Silicon General Purpose Amplifier Transistor (ON Semiconductor)
  • 2SC5654 - NPN Transistor (Panasonic Semiconductor)
  • 2SC5654G - Silicon NPN Transistor (Panasonic)
  • 2SC5656 - NPN SILICON RF TRANSISTOR (NEC)
Other Datasheets by Taiwan Semiconductor

Full PDF Text Transcription

Click to expand full text

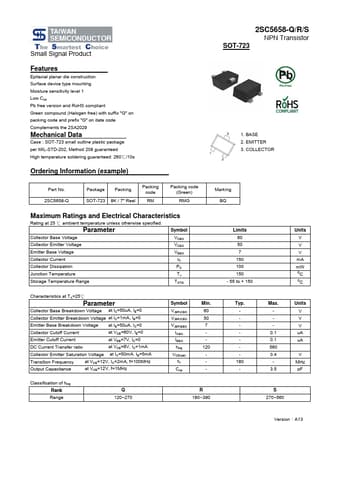

CREAT BY ART Small Signal Product 2SC5658-Q/R/S NPN Transistor SOT-723 Features Epitaxial planar die construction Surface device type mounting Moisture sensitivity level 1 Low Cob Pb free version and RoHS compliant Green compound (Halogen free) with suffix "G" on packing code and prefix "G" on date code Complements the 2SA2029 Mechanical Data Case : SOT-723 small outline plastic package per MIL-STD-202, Method 208 guaranteed High temperature soldering guaranteed: 260℃/10s 1. BASE 2. EMITTER 3. COLLECTOR Ordering Information (example) Part No. 2SC5658-Q Package Packing SOT-723 8K / 7" Reel Packing code RM Packing code (Green) RMG Marking BQ Maximum Ratings and Electrical Characteristics Rating at 25 ℃ ambient temperature unless otherwise specified.
