2A05G - Glass Passivated Rectifiers

Download the 2A05G datasheet PDF. This datasheet also covers the 2A01G variant, as both devices belong to the same glass passivated rectifiers family and are provided as variant models within a single manufacturer datasheet.

General Description

only.

No license, express or implied, to any intellectual property rights is granted by this document.

Key Features

  • AEC-Q101 qualified available.
  • Glass passivated chip junction.
  • High efficiency, Low VF.
  • High current capability.
  • High surge current capability.
  • Low power loss.
  • RoHS Compliant.
  • Halogen-free according to IEC 61249-2-21.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2A01G-TaiwanSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
2A05G 2.0A GLASS PASSIVATED RECTIFIER DIODES
2A05 AXIAL LEADED SILICON ZENER DIODES Sunmate
2A05 2.0A RECTIFIER DIODES
2A05 2 Amp Silicon Rectifier MCC
2A05 General Purpose Rectifiers Thinki Semiconductor

Other Datasheets by Taiwan Semiconductor

Part Number Description
2A05G-T 2A Glass Passivated Rectifier
2A05 Silicon Rectifiers
2A01 Silicon Rectifiers
2A01G Glass Passivated Rectifiers
2A01G-T 2A Glass Passivated Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

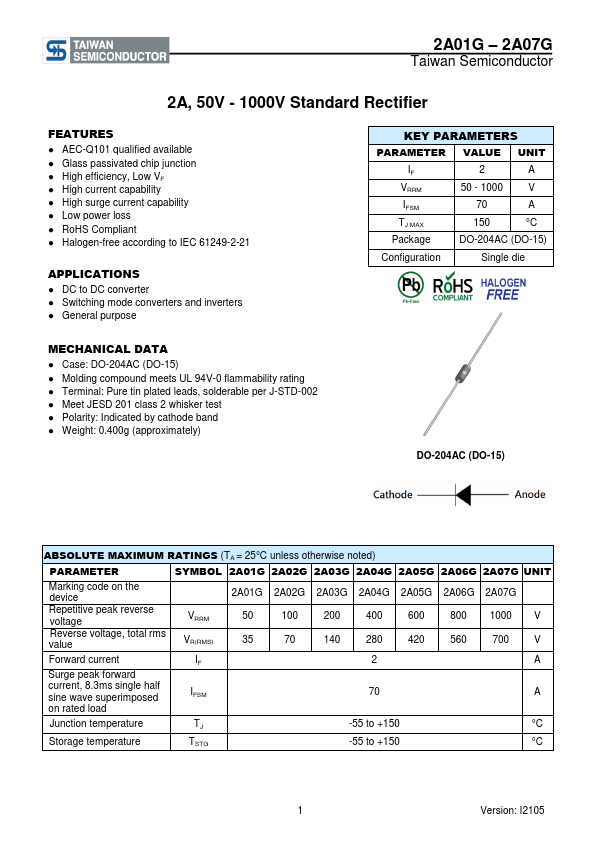

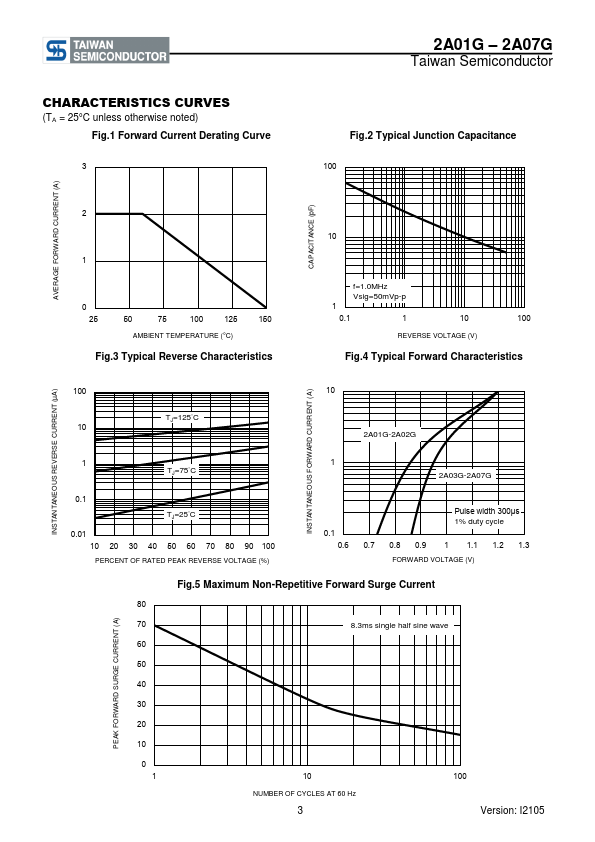

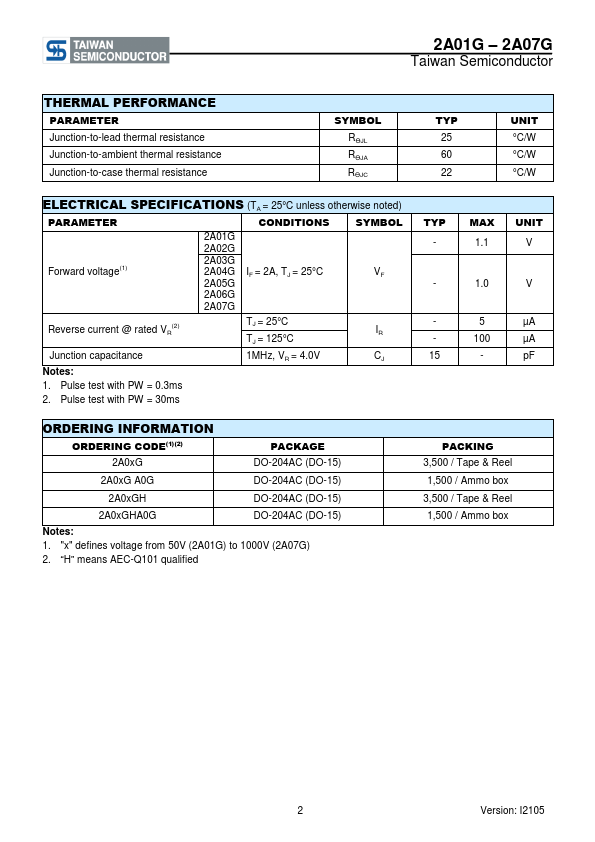

2A01G – 2A07G Taiwan Semiconductor 2A, 50V - 1000V Standard Rectifier FEATURES ● AEC-Q101 qualified available ● Glass passivated chip junction ● High efficiency, Low VF ● High current capability ● High surge current capability ● Low power loss ● RoHS Compliant ● Halogen-free according to IEC 61249-2-21 APPLICATIONS ● DC to DC converter ● Switching mode converters and inverters ● General purpose KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM 2 A 50 - 1000 V IFSM TJ MAX Package 70 A 150 °C DO-204AC (DO-15) Configuration Single die MECHANICAL DATA ● Case: DO-204AC (DO-15) ● Molding compound meets UL 94V-0 flammability rating ● Terminal: Pure tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: Indicated by cathode band ● Weight: 0.
