1W04 - Single Phase 1.0 AMP. Silicon Bridge Rectifiers

Download the 1W04 datasheet PDF (1W005 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for single phase 1.0 amp. silicon bridge rectifiers.

Features

  • UL Recognized File # E-96005 Surge overload ratings to 30 amperes peak Ideal for printed circuit board Reliable low cost construction technique results in inexpensive product High temperature soldering guaranteed: 260 oC / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Mechanical Data Case: Molded plastic Lead: Pure tin plated, Lead free. Polarity: As marked Weight: 1.07 grams Dimensions in inches and (millimeters) Rating at 25 oC ambient temperature unless otherwise s.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1W005_TaiwanSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • 1W04 - SINGLEPHASE1.0AMPSILICONBRIDGERECTIFIERS (JinanGudeElectronicDevice)
  • 1W04G - SINGLEPHASE1.0AMP.GLASSPASSIVATEDBRIDGERECTIFIERS (JinanGudeElectronicDevice)
  • 1W005 - SINGLEPHASE1.0AMPSILICONBRIDGERECTIFIERS (JinanGudeElectronicDevice)
  • 1W005 - EDI Single-1 to 12 Amperes Commercial Grade Bridges (Electronic devices)
  • 1W005G - SINGLEPHASE1.0AMP.GLASSPASSIVATEDBRIDGERECTIFIERS (JinanGudeElectronicDevice)
  • 1W01 - SINGLEPHASE1.0AMPSILICONBRIDGERECTIFIERS (JinanGudeElectronicDevice)
  • 1W01G - SINGLEPHASE1.0AMP.GLASSPASSIVATEDBRIDGERECTIFIERS (JinanGudeElectronicDevice)
  • 1W02 - SINGLEPHASE1.0AMPSILICONBRIDGERECTIFIERS (JinanGudeElectronicDevice)
  • 1W02G - SINGLEPHASE1.0AMP.GLASSPASSIVATEDBRIDGERECTIFIERS (JinanGudeElectronicDevice)
  • 1W06 - SINGLEPHASE1.0AMPSILICONBRIDGERECTIFIERS (JinanGudeElectronicDevice)
Other Datasheets by Taiwan Semiconductor
  • 1W005 - Single Phase 1.0 AMP. Silicon Bridge Rectifiers
  • 1W01 - Single Phase 1.0 AMP. Silicon Bridge Rectifiers
  • 1W02 - Single Phase 1.0 AMP. Silicon Bridge Rectifiers
  • 1W06 - Single Phase 1.0 AMP. Silicon Bridge Rectifiers
  • 1W08 - Single Phase 1.0 AMP. Silicon Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text

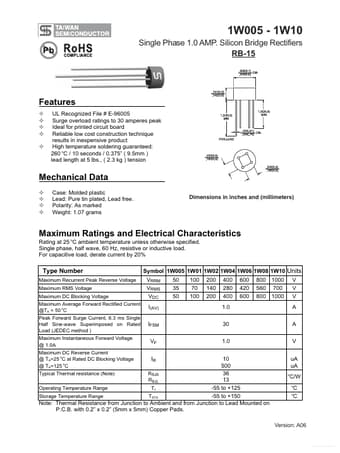

1W005 - 1W10 Single Phase 1.0 AMP. Silicon Bridge Rectifiers RB-15 Features UL Recognized File # E-96005 Surge overload ratings to 30 amperes peak Ideal for printed circuit board Reliable low cost construction technique results in inexpensive product High temperature soldering guaranteed: 260 oC / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs., ( 2.3 kg ) tension Mechanical Data Case: Molded plastic Lead: Pure tin plated, Lead free. Polarity: As marked Weight: 1.07 grams Dimensions in inches and (millimeters) Rating at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
