1T5G, Standard Rectifier

1T1G * 1T7G Taiwan Semiconductor 1A, 50V - 1000V Standard Rectifier .
only.

1T5G-TaiwanSemiconductor.pdf

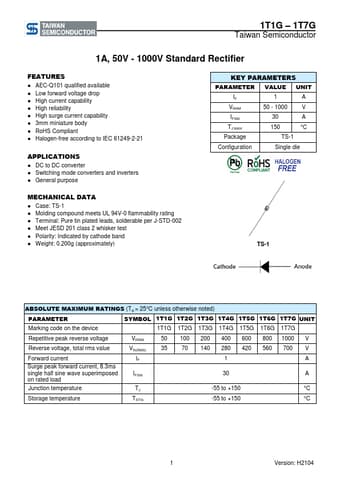

1T5G Datasheet Preview — Preview of 1T5G PDF

Datasheet Details

Part number:

1T5G

Manufacturer:

Taiwan Semiconductor

File Size:

417.11 KB

Description:

Standard Rectifier

Features

* AEC-Q101 qualified available
* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability
* 3mm miniature body
* RoHS Compliant

Applications

* DC to DC converter
* Switching mode converters and inverters
* General purpose KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM IFSM TJ MAX Package 1 A 50 - 1000 V 30 A 150 °C TS-1 Configuration Single die MECHANICAL DATA
* Case: TS-1
* Molding compound meets UL 94V-0
