1N5820

The 1N5820 is Schottky Barrier Rectifiers designed by Taiwan Semiconductor.

Product Overview

Taiwan Semiconductor

Datasheet Details

Part number	1N5820
Manufacturer	Taiwan Semiconductor
File Size	167.61 KB
Description	Schottky Barrier Rectifiers
Datasheet	1N5820-TaiwanSemiconductor.pdf

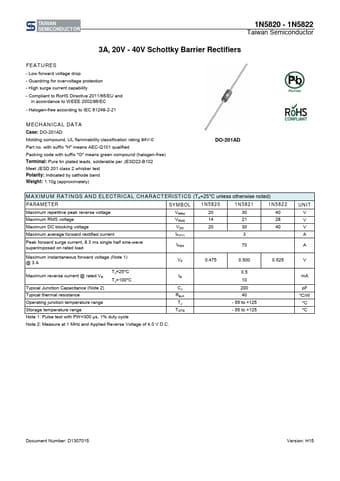

Additional preview pages of the 1N5820 datasheet.

Product details

Description

AEC-Q101 qualified Green compound RATINGS AND CHARACTERISTICS CURVES (TA=25°C unless otherwise noted) AVERAGE FORWARD A CURRENT (A) FIG.1 MAXIMUM FORWARD CURRENT DERATING CURVE 4 3 2 1 RESISTIVE OF INDUCTIVE LOAD 0 0 20 40 60 80 100 120 140 LEAD TEMPERATURE (oC) PEAK FORWARD SURGE CURRENT (A) 80 70 60 50 40 30 20 10 1 FIG.2 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 8.3ms Single Half Sine Wave 10 NUMBER OF CYCLES AT 60 Hz 100 INSTANTANEOUS FORWARD A CURRENT (A) FIG.3- TYPICAL

Features

- Low forward voltage drop - Guardring for overvoltage protection - High surge current capability - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21.
