SR3030PT, SR3020PT - (SR3020PT - SR30150PT) 30.0 AMPS. Schottky Barrier Rectifiers

Name: SR3030PT
SKU: SR3030PT-664262

Taiwan Semiconductor Company

The SR3030PT by Taiwan Semiconductor Company is a (SR3020PT - SR30150PT) 30.0 AMPS. Schottky Barrier Rectifiers. Below is the official datasheet preview.

📥 Download Datasheet

SR3030PT (SR3020PT - SR30150PT) 30.0 AMPS. Schottky Barrier Rectifiers by Taiwan Semiconductor Company - Datasheet Preview — Official preview page of the **SR3030PT** (SR3020PT - SR30150PT) 30.0 AMPS. Schottky Barrier Rectifiers datasheet (Taiwan Semiconductor Company).

Datasheet Details

Part number	SR3030PT, SR3020PT
Manufacturer	Taiwan Semiconductor Company
File Size	207.66 KB
Description	(SR3020PT - SR30150PT) 30.0 AMPS. Schottky Barrier Rectifiers
Datasheet	SR3020PT_TaiwanSemiconductorCompany.pdf
Note	This datasheet PDF includes multiple part numbers: SR3030PT, SR3020PT. Please refer to the document for exact specifications by model.

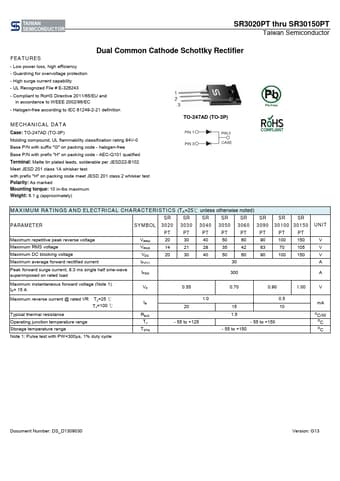

Additional preview pages of the SR3030PT datasheet.

SR3030PT Product details

Features

Dual rectifier construction, positive center-tap Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low VF High surge capability Epitaxial construction For use in low voltage, high frequency inverters, free wheeling, and polarity protection.
