SDB110 - (SDB12 - SDB110) Schottky Barrier Rectifiers

Download the SDB110 datasheet PDF. This datasheet also covers the SDB13 variant, as both devices belong to the same (sdb12 - sdb110) schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Metal to silicon rectifier, majority carrier conduction Low forward voltage drop Easy pick and place High surge current capability Plastic material used carriers Underwriters Laboratory Classification 94V-O Epitaxial construction High temperature soldering: o 260 C/ 10 seconds at terminals Small size, single installation lead solderable per MIL-STD-202 Method 208 DB DBS .047(1.20) .040(1.02) .205(5.2) .195(5.0) Mechanical Data Case: Molded plastic Terminals: Solder plated Polarity: Indicated.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SDB13_TaiwanSemiconductorCompany.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SDB110
Manufacturer Taiwan Semiconductor Company
File Size 131.03 KB
Description (SDB12 - SDB110) Schottky Barrier Rectifiers
Datasheet download datasheet SDB110 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SDB110 Schottky Barrier Bridge Rectifiers LGE
SDB110FW Schottky Barrier Rectifier SEMTECH
SDB110Q Schottky Barrier Diode AUK
SDB110Q General Purpose Schottky Barrier Diode KODENSHI
SDB110W Surface Mount Schottky Barrier Rectifier SEMTECH

Other Datasheets by Taiwan Semiconductor Company

Part Number Description
SDB12 (SDB12 - SDB110) Schottky Barrier Rectifiers
SDB13 (SDB12 - SDB110) Schottky Barrier Rectifiers
SDB14 (SDB12 - SDB110) Schottky Barrier Rectifiers
SDB15 (SDB12 - SDB110) Schottky Barrier Rectifiers
SDB16 (SDB12 - SDB110) Schottky Barrier Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

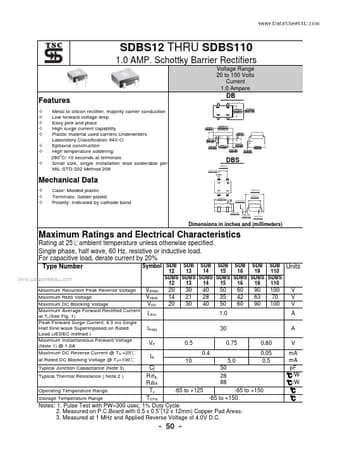

SDBS12 THRU SDBS110 1.0 AMP. Schottky Barrier Rectifiers Voltage Range 20 to 100 Volts Current 1.0 Ampere Features Metal to silicon rectifier, majority carrier conduction Low forward voltage drop Easy pick and place High surge current capability Plastic material used carriers Underwriters Laboratory Classification 94V-O Epitaxial construction High temperature soldering: o 260 C/ 10 seconds at terminals Small size, single installation lead solderable per MIL-STD-202 Method 208 DB DBS .047(1.20) .040(1.02) .205(5.2) .195(5.0) Mechanical Data Case: Molded plastic Terminals: Solder plated Polarity: Indicated by cathode band .404(10.3) .386(9.80) .335(8.51) .320(8.13) 45 0 .255(6.5) .245(6.2) .013(0.33) .0088(0.22) .130(3.30) .120(3.05) .060(1.53) .040(1.02) .013(0.33) .003(0.
