TXG200HF65CK Half Bridge IGBT

📥 Download Datasheet Datasheet Preview Page 1

Description

Product Datasheet TXG200HF65CK Half Bridge Module IGBT Module 34mm Module with Trench IGBT and Fast recovery diode..

📥 Download Datasheet

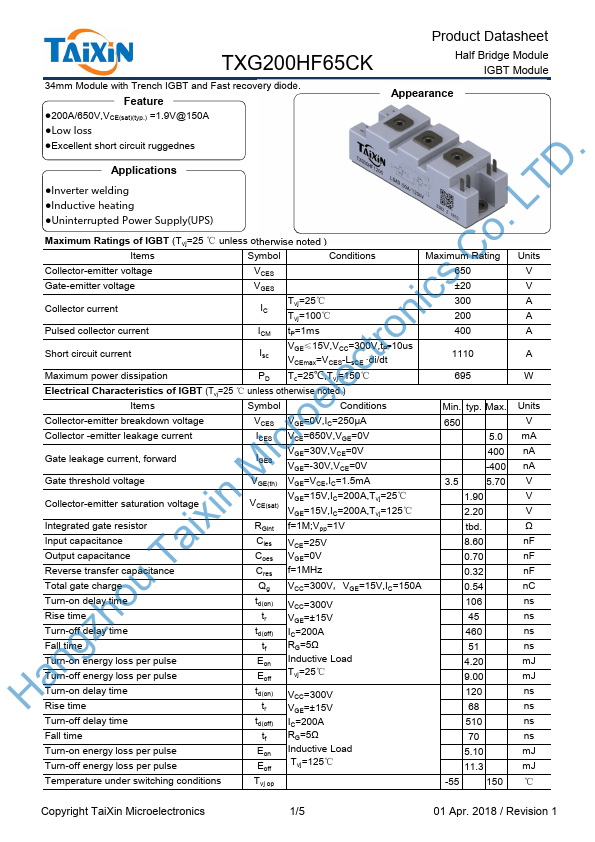

Preview of TXG200HF65CK PDF

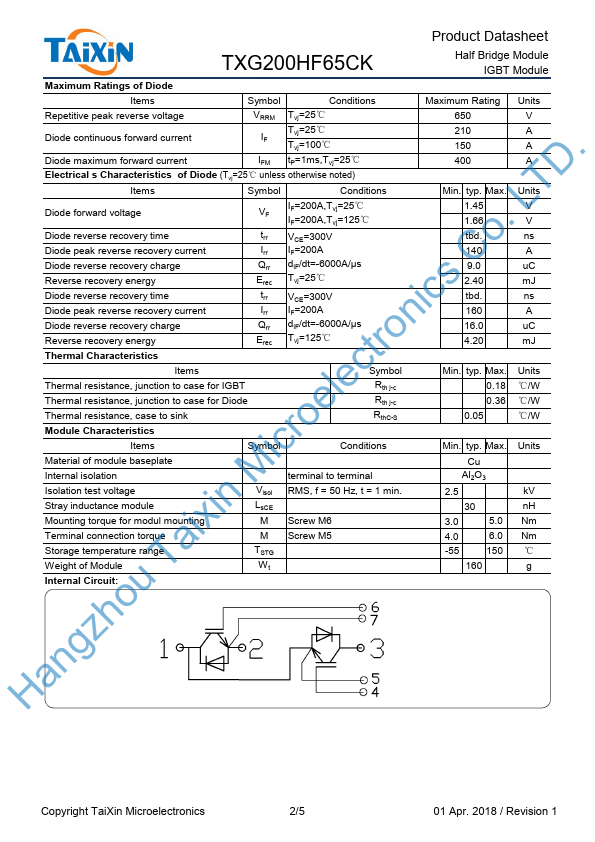

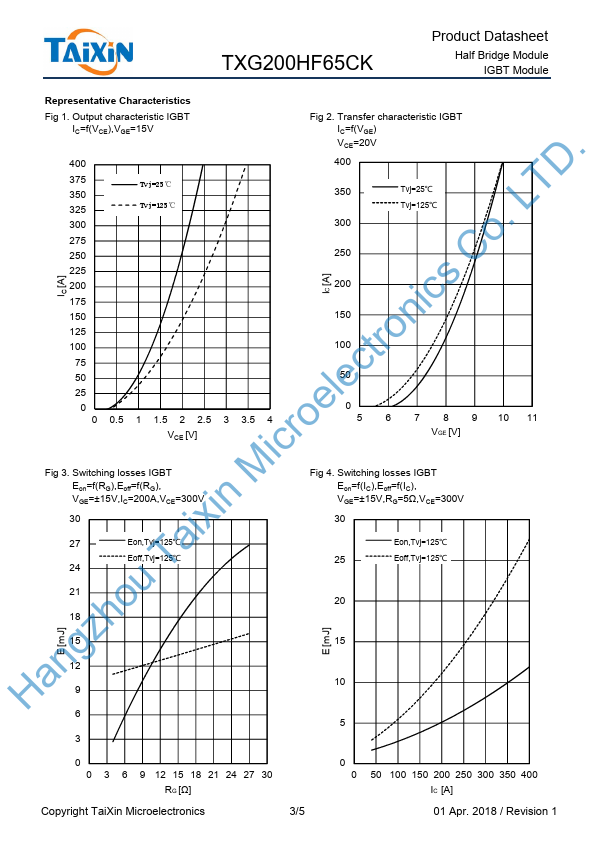

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
TXG200HF65CK
Manufacturer
TaiXin
File Size
970.27 KB
Datasheet
TXG200HF65CK-TaiXin.pdf
Description
Half Bridge IGBT

Applications

* TD
* Inverter welding L
* Inductive heating
* Uninterrupted Power Supply(UPS) o. Maximum Ratings of IGBT (Tvj=25 ℃ unless otherwise noted ) Items Symbol Conditions Maximum Rating C Collector-emitter voltage VCES 650 s Gate-emitter voltage VGES ±20 ic Collector current IC Tvj=
