TS80210N Broadband SPDT GaN RF Switch

TS80210N Description

TS80210N - 50W CW, Broadband SPDT GaN RF Switch 1.0 .
The TS80210N is a 2nd Generation symmetrical reflective Single Pole Dual Throw (SPDT) switch designed for broadband, high power switching applications.

TS80210N Features

* Low insertion loss: 0.5dB @ 4GHz
* High isolation: 42dB @ 0.8GHz, 20dB @ 4GHz
* 50W CW, 125W Peak Power
* No external DC blocking capacitors on RF lines
* All RF ports OFF state
* Versatile 2.6-5.25V power supply
* Operating frequency: 30MHz

TS80210N Applications

* Private mobile and military radios
* Public safety handsets
* Cellular infrastructure
* Small cells
* LTE relays and microcells

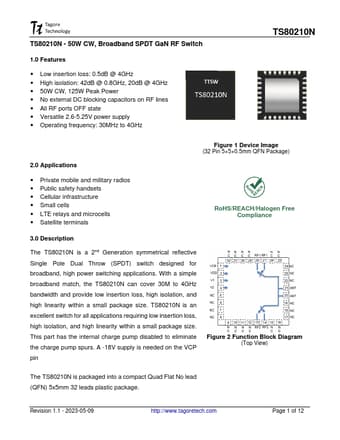

* Satellite terminals Figure 1 Device Image (32 Pin 5×5×0.5mm QFN Package) RoHS/REACH/Halogen Free Compliance 3.0 Descri

📥 Download Datasheet

Preview of TS80210N PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TS80210N
Manufacturer
Tagore
File Size
512.99 KB
Datasheet
TS80210N-Tagore.pdf
Description
Broadband SPDT GaN RF Switch
