TS7225FK - 10W CW GaN Broadband RF Switch SPDT

The TS7225FK by Tagore is a 10W CW GaN Broadband RF Switch SPDT. Below is the official datasheet preview.

Datasheet Details

Part number	TS7225FK
Manufacturer	Tagore
File Size	597.91 KB
Description	10W CW GaN Broadband RF Switch SPDT
Datasheet	TS7225FK-Tagore.pdf

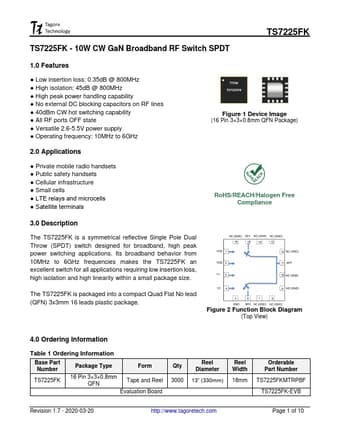

Additional preview pages of the TS7225FK datasheet.

The TS7225FK is a symmetrical reflective Single Pole Dual Throw (SPDT) switch designed for broadband, high peak power switching applications.

Low insertion loss: 0.35dB @ 800MHz.
High isolation: 45dB @ 800MHz.
High peak power handling capability.
No external DC blocking capacitors on RF lines.
40dBm CW hot switching capability.
All RF ports OFF state.
Versatile 2.6-5.5V power supply.
Operating frequency: 10MHz to 6GHz Figure 1 Device Image (16 Pin 3×3×0.8mm QFN Package) 2.0.
