OPB903 - Optical Switch

Download the OPB903 datasheet PDF. This datasheet also covers the OPB910 variant, as both devices belong to the same optical switch family and are provided as variant models within a single manufacturer datasheet.

Description

The OPB900 - OPB913 series of Photologic® Integrated Circuit Switches provide optimum flexibility for the design engineer.

Building from a standard housing with a 0.375” (9.5mm) wide slot, a user can specify the type and polarity of the TTL output and the type of shell material.

Features

  • 0.375” (9.5 mm) wide gap.
  • Choice of logical output configurations.
  • Choice of opaque or IR transmissive housing material.
  • Choice of PCBoard or 26 AWG, UL rated wire.
  • Data rates to 250 kBaud L Series W Series.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (OPB910_TT.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
OPB930 Photologic Slotted Optical Switches OPTEK
OPB930L Photologic Slotted Optical Switches OPTEK
OPB930W Photologic Slotted Optical Switches OPTEK
OPB940 Photologic Slotted Optical Switches OPTEK
OPB940L Photologic Slotted Optical Switches OPTEK

Other Datasheets by TT Electronics

Part Number Description
OPB900 Optical Switch
OPB9000 SMD Reflective Optical Sensor
OPB9001 Reflective Optical Sensor
OPB901 Optical Switch
OPB902 Optical Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

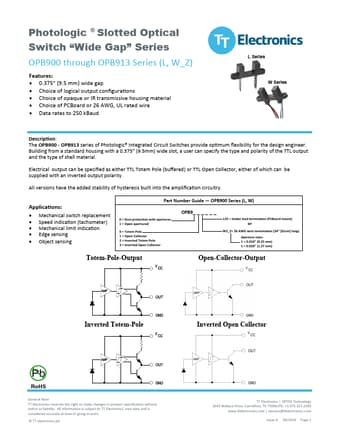

Photologic ® Slotted Optical Switch “Wide Gap” Series OPB900 through OPB913 Series (L, W_Z) Features:  0.375” (9.5 mm) wide gap  Choice of logical output configurations  Choice of opaque or IR transmissive housing material  Choice of PCBoard or 26 AWG, UL rated wire  Data rates to 250 kBaud L Series W Series Description: The OPB900 - OPB913 series of Photologic® Integrated Circuit Switches provide optimum flexibility for the design engineer. Building from a standard housing with a 0.375” (9.5mm) wide slot, a user can specify the type and polarity of the TTL output and the type of shell material. Electrical output can be specified as either TTL Totem Pole (buffered) or TTL Open Collector, either of which can be supplied with an inverted output polarity.
