OPB821S5Z - Slotted Optical Switch

Download the OPB821S5Z datasheet PDF (OPB820 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for slotted optical switch.

Description

Each OPB820S and OPB821Z device consists of an infrared emitting diode (LED, 890 nm center wavelength) and a NPN silicon phototransistor mounted in a low-cost black plastic housing on opposite sides of an 0.080” (2.03 mm) wide slot.

Features

  • Non-contact switching.
  • Four standard aperture sizes for high resolution.
  • Low profile.
  • 0.080” (2.03 mm) wide, 0.250” (8.89 mm) deep slot.
  • Choice of PCBoard or wire mountings OPB820S OPB821Z.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (OPB820-TT.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • OPB821S5 - Slotted Optical Switches (OPTEK)
  • OPB821S10 - Slotted Optical Switches (OPTEK)
  • OPB821S3 - Slotted Optical Switches (OPTEK)
  • OPB821 - Slotted Optical Switches (OPTEK)
  • OPB823A - SLOTTED OPTICAL SWITCHES (ETC)
  • OPB824A - SLOTTED OPTICAL SWITCHES (ETC)
  • OPB826S - Dual Channel Slotted Optical Switches (OPTEK)
  • OPB826SD - Dual Channel Slotted Optical Switches (OPTEK)
  • OPB829A - SLOTTED OPTICAL SWITCHES (ETC)
  • OPB829B - SLOTTED OPTICAL SWITCHES (ETC)
Other Datasheets by TT

Full PDF Text Transcription

Click to expand full text

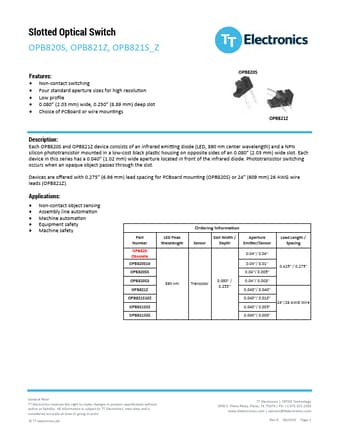

Slotted Optical Switch OPB820S, OPB821Z, OPB821S_Z Features: • Non-contact switching • Four standard aperture sizes for high resolution • Low profile • 0.080” (2.03 mm) wide, 0.250” (8.89 mm) deep slot • Choice of PCBoard or wire mountings OPB820S OPB821Z Description: Each OPB820S and OPB821Z device consists of an infrared emitting diode (LED, 890 nm center wavelength) and a NPN silicon phototransistor mounted in a low-cost black plastic housing on opposite sides of an 0.080” (2.03 mm) wide slot. Each device in this series has a 0.040” (1.02 mm) wide aperture located in front of the infrared diode. Phototransistor switching occurs when an opaque object passes through the slot. Devices are offered with 0.275” (6.
