OPB800L - Optical Switch

Product Overview

OPB800L Optical Switch by TT - Datasheet Preview — Datasheet preview – OPB800L

Datasheet Details

Part number	OPB800L
Manufacturer	TT
File Size	524.65 KB
Description	Optical Switch
Datasheet	OPB800L Datasheet
Note	This datasheet PDF includes multiple part numbers: OPB800L, OPB800. Please refer to the document for exact specifications by model.

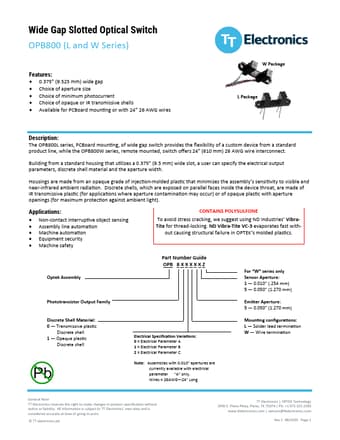

Additional preview pages of the OPB800L datasheet.

Product details

Description

The OPB800L series, PCBoard mounting, of wide gap switch provides the flexibility of a custom device from a standard product line, while the OPB800W series, remote mounted, switch offers 24” (610 mm) 26 AWG wire interconnect.

Features

0.375” (9.525 mm) wide gap.
Choice of aperture size.
Choice of minimum photocurrent.
Choice of opaque or IR transmissive shells.
Available for PCBoard mounting or with 24” 26 AWG wires W Package L Package.
