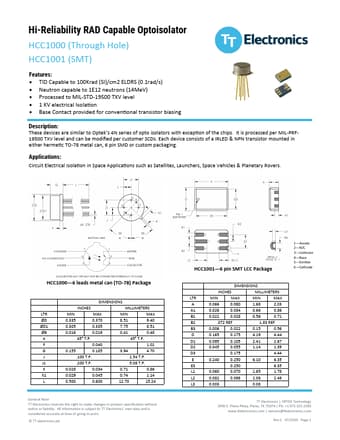

HCC1001, HCC1000 Hi-Reliability RAD Capable Optoisolator

HCC1001 Description

Hi-Reliability RAD Capable Optoisolator HCC1000 (Through Hole) HCC1001 (SMT) .
These devices are similar to Optek’s 4N series of opto isolators with exception of the chips.

HCC1001 Features

* TID Capable to 100Krad (SI)/cm2 ELDRS (0.1rad/s)
* Neutron capable to 1E12 neutrons (14MeV)
* Processed to MIL-STD-19500 TXV level
* 1 KV electrical Isolation

HCC1001 Applications

* Circuit Electrical Isolation in Space Applications such as Satellites, Launchers, Space Vehicles & Planetary Rovers. HCC1000
* 6 leads metal can (TO-78) Package DIMENSIONS INCHES MILLIMETERS LTR MIN MAX MIN MAX ØD 0.335 0.370 8.51 9.40 ØD1 0.305 0.335 7.75 8.51 ØB 0.016

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HCC1001, HCC1000. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HCC1001, HCC1000
Manufacturer
TT
File Size
628.06 KB
Datasheet
HCC1000-TT.pdf
Description
Hi-Reliability RAD Capable Optoisolator
Note
This datasheet PDF includes multiple part numbers: HCC1001, HCC1000.
Please refer to the document for exact specifications by model.
