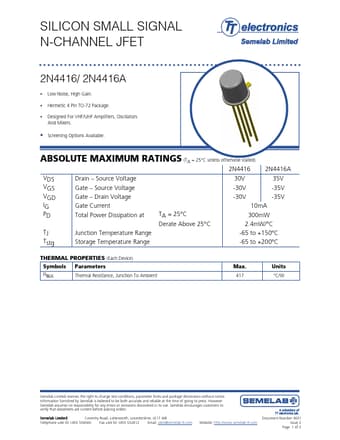

SILICON SMALL SIGNAL N-CHANNEL JFET
2N4416/ 2N4416A
• Low Noise, High Gain. • Hermetic 4 Pin TO-72 Package. • Designed For VHF/UHF Amplifiers, Oscillators
And Mixers.
• Screening Options Available.
ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise stated)
2N4416 2N4416A
VDS Drain – Source Voltage
30V 35V
VGS Gate – Source Voltage
-30V
-35V
VGD Gate – Drain Voltage
-30V
-35V
IG Gate Current
10mA
PD Total Power Dissipation at TA = 25°C
300mW
Derate Above 25°C
2.4mW/°C
TJ Junction Temperature Range
-65 to +150°C
Tstg Storage Temperature Range
-65 to +200°C
THERMAL PROPERTIES (Each Device)
Symbols Parameters
RθJA
Thermal Resistance, Junction To Ambient
Max.
2N4416 Datasheet
