2N3735, 2N3734 Datasheet - TT

2N3735 GENERAL PURPOSE SILICON NPN TRANSISTOR

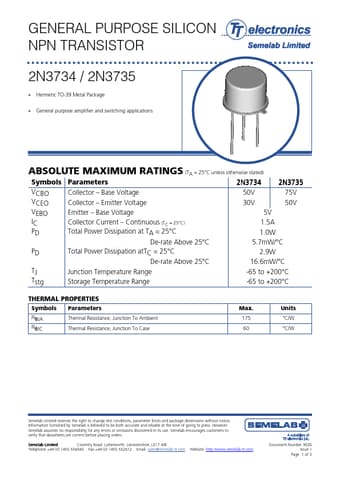

GENERAL PURPOSE SILICON NPN TRANSISTOR 2N3734 / 2N3735 Hermetic TO-39 Metal Package General purpose amplifier and switching applications ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise stated) Symbols Parameters 2N3734 2N3735 VCBO Collector Base Voltage 50V 75V VCEO Collector Emitter Voltage 30V 50V VEBO Emitter Base Voltage 5V IC Collector Current Continuous (TC = 25°C) PD Total Power Dissipation at TA = 25°C 1.

2N3734-TT.pdf

This datasheet PDF includes multiple part numbers: 2N3735, 2N3734. Please refer to the document for exact specifications by model.
2N3735 Datasheet Preview Page 2 2N3735 Datasheet Preview Page 3

Datasheet Details

Part number:

2N3735, 2N3734

Manufacturer:

TT

File Size:

129.68 KB

Description:

General purpose silicon npn transistor.

Note:

This datasheet PDF includes multiple part numbers: 2N3735, 2N3734.
Please refer to the document for exact specifications by model.
