1N6325BD2A - 500mW ZENER DIODES

Download the 1N6325BD2A datasheet PDF. This datasheet also covers the 1N6309BD2A variant, as both devices belong to the same 500mw zener diodes family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N6309BD2A-TT.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1N6325 500mW GLASS ZENER DIODES Microsemi
1N6325 0.5W Zener Voltage Regulators VPT
1N6325 500mW GLASS ZENER DIODES Digitron Semiconductors
1N6325 Zener Voltage Regulator Aeroflex
1N6325 ZENER 500mW VOLTAGE REGULATOR SENSITRON SEMICONDUCTOR

Other Datasheets by TT Electronics

Part Number Description
1N6320BD2A 500mW ZENER DIODES
1N6321BD2A 500mW ZENER DIODES
1N6322BD2A 500mW ZENER DIODES
1N6323BD2A 500mW ZENER DIODES
1N6324BD2A 500mW ZENER DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

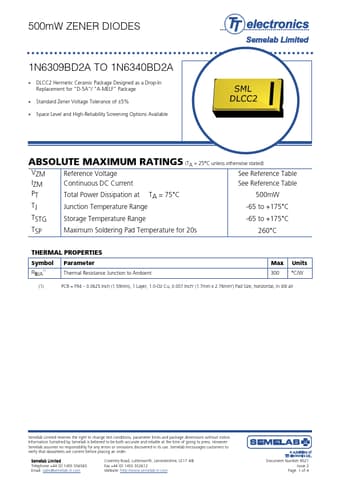

500mW ZENER DIODES 1N6309BD2A TO 1N6340BD2A • DLCC2 Hermetic Ceramic Package Designed as a Drop-In Replacement for “D-5A”/ “A-MELF” Package • Standard Zener Voltage Tolerance of ±5% • Space Level and High-Reliability Screening Options Available ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise stated) VZM Reference Voltage See Reference Table IZM Continuous DC Current See Reference Table PT Total Power Dissipation at TA = 75°C 500mW TJ Junction Temperature Range -65 to +175°C TSTG Storage Temperature Range -65 to +175°C TSP Maximum Soldering Pad Temperature for 20s 260°C THERMAL PROPERTIES Symbol RθJA(1) Parameter Thermal Resistance Junction to Ambient Max Units 300 °C/W (1) PCB = FR4 – 0.0625 Inch (1.59mm), 1 Layer, 1.0-Oz Cu, 0.007 Inch2 (1.7mm x 2.
