MBR10100 - (MBR1035 - MBR10200) Schottky Barrier Rectifiers

The MBR10100 by TSC is a (MBR1035 - MBR10200) Schottky Barrier Rectifiers. Below is the official datasheet preview.

📥 Download Datasheet

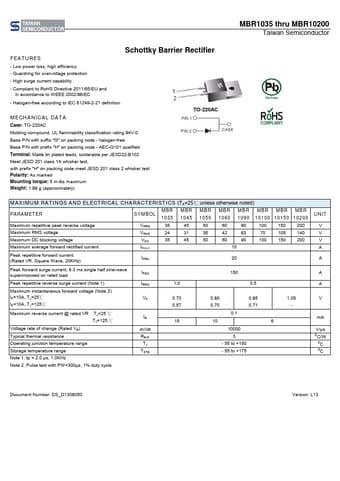

Official preview page of the MBR10100 (MBR1035 - MBR10200) Schottky Barrier Rectifiers datasheet (TSC).

Datasheet Details

Part number MBR10100
Manufacturer TSC
File Size 226.73 KB
Description (MBR1035 - MBR10200) Schottky Barrier Rectifiers
Datasheet download datasheet MBR10100_TSC.pdf
Additional preview pages of the MBR10100 datasheet.

MBR10100 Product details

Description

G Green compound AEC-Q101 qualified RATINGS AND CHARACTERISTICS CURVES (TA=25℃ unless otherwise noted) AVERAGE FORWARD A CURRENT (A) FIG.1- FORWARD CURRENT DERATING CURVE 12 10 8 6 RESISTIVE OR INDUCTIVELOAD 4 WITH HEATSINK 2 MBR1035-MBR1045 MBR1050-MBR10200 0 0 50 100 CASE TEMPERATURE (oC) 150 PEAK FORWARD SURGE CURRENT (A) 175 150 125 100 75 50 25 0 FIG.2- MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 1 10 NUMBER OF CYCLES AT 60 Hz 100 INSTANTANEOUS FORWARD CURRENT (A) FIG.3
