MBR8035, MBR8020 - (MBR8020 - MBR80100R) SCHOTTKY DIODES

Name: MBR8035
SKU: MBR8035-729671

TRANSYS

The MBR8035 by TRANSYS is a (MBR8020 - MBR80100R) SCHOTTKY DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	MBR8035, MBR8020
Manufacturer	TRANSYS
File Size	172.52 KB
Description	(MBR8020 - MBR80100R) SCHOTTKY DIODES
Datasheet	MBR8020_TRANSYS.pdf
Note	This datasheet PDF includes multiple part numbers: MBR8035, MBR8020. Please refer to the document for exact specifications by model.

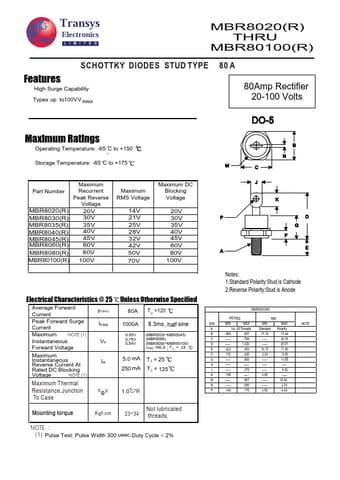

Additional preview pages of the MBR8035 datasheet.

High Surge Capability Types up to100V V RRM DO-5 Maximum Ratings Operating Temperature: -65 C to +150 N B Storage Temperature: -65 C to +175 M C J Part Number MBR8020(R) MBR8030(R) MBR8035(R) MBR8040(R) MBR8045(R) MBR8060(R) MBR8080(R) MBR80100(R) Maximum Recurrent Peak Reverse Voltage 20V 30V 35V 40V 45V 60V 80V 100V Maximum RMS Voltage 14V 21V 25V 28V 32V 42V 50V 70V Maximum DC Blocking Voltage 20V 30V 35V 40V 45V 60V 80V 100V http://www. DataSheet4U. net/ K P G F A D E Notes: 1.S.
