The BD435 is EPITAXIAL SILICON POWER TRANSISTORS designed by TRANSYS Electronics.
| Part number | BD435, BD438 |
|---|---|
| Manufacturer | TRANSYS Electronics |
| File Size | 99.95 KB |
| Description | EPITAXIAL SILICON POWER TRANSISTORS |
| Datasheet |

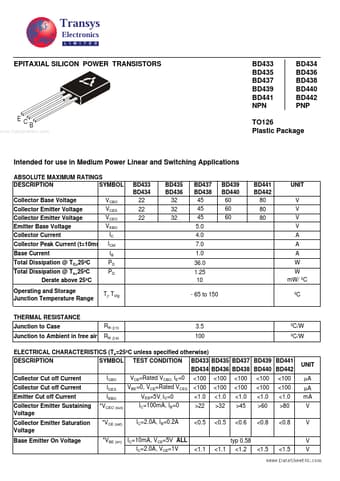

 BD438_TRANSYSElectronics.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: BD435, BD438. Please refer to the document for exact specifications by model. |
|
|
SYMBOL Collector Base Voltage Collector Emitter Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Base Current Total Dissipation @ TC=25ºC Total Dissipation @ Ta=25ºC Derate above 25ºC Operating and Storage Junction Temperature Range THERMAL RESISTANCE Junction to Case Junction to Ambient in free air Rth (j-c) Rth (j-a) 3.5 100 ºC/W ºC/W VCBO VCES VCEO VEBO IC IB PD PD BD433 BD434 22 22 22 BD435 BD436 32 32 32 BD437 BD438 45 45 45 5.0 4.0 7.0 1.0 36.0 1.25 10 - 65 to 150 B
