2N3055HV - NPN POWER TRANSISTOR

Description

Collector Base Voltage ( Open Emitter) Collector Emitter Voltage (Open Base) Emitter Base Voltage Collector Current Base Current Total Power Dissipation up toTc=25ºC Junction Temperature Storage Temperature THERMAL RESISTANCE Junction to Case Rth(j-c) 1.75 ºC/W SYMBOL VCBO VCEO VEBO IC IB Ptot Tj Ts

📥 Download Datasheet

Datasheet Details

Part number 2N3055HV
Manufacturer TRANSYS Electronics Limited
File Size 205.06 KB
Description NPN POWER TRANSISTOR
Datasheet download datasheet 2N3055HV Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2N3055HV NPN Power Transistor CDIL
2N3055H 15A Power Transistors Multicomp
2N3055H Silicon Power Transistor USHA
2N3055H Silicon NPN Power Transistor Inchange Semiconductor
2N3055H Power Transistor Seme LAB

Other Datasheets by TRANSYS Electronics Limited

Part Number Description
2N3772 NPN SILICON PLANAR POWER TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

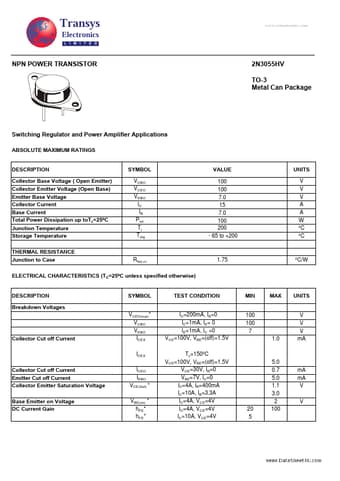

Transys Electronics L I M I T E D www.DataSheet4U.com NPN POWER TRANSISTOR 2N3055HV TO-3 Metal Can Package Switching Regulator and Power Amplifier Applications ABSOLUTE MAXIMUM RATINGS DESCRIPTION Collector Base Voltage ( Open Emitter) Collector Emitter Voltage (Open Base) Emitter Base Voltage Collector Current Base Current Total Power Dissipation up toTc=25ºC Junction Temperature Storage Temperature THERMAL RESISTANCE Junction to Case Rth(j-c) 1.75 ºC/W SYMBOL VCBO VCEO VEBO IC IB Ptot Tj Tstg VALUE 100 100 7.0 15 7.
