Datasheet Details
Part number:
TMR10-7211WIR, TMR10-2410WIR
Manufacturer:
TRACO POWER
File Size:
917.97 KB
Description:
Dc/dc railway converter.
Note:
This datasheet PDF includes multiple part numbers: TMR10-7211WIR, TMR10-2410WIR.
Please refer to the document for exact specifications by model.

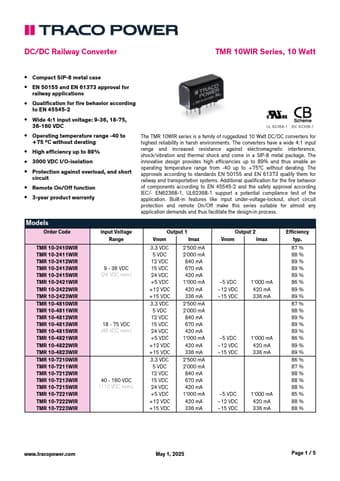

TMR10-7211WIR, TMR10-2410WIR Description
DC/DC Railway Converter TMR 10WIR Series, 10 Watt * Compact SIP-8 metal case * EN 50155 and EN 61373 approval for railway applications * Qualification for fire behavior according to EN 45545-2 * Wide 4:1 input voltage: 9-36, 18-75, 36-160 VDC UL 62368-1 IEC 62368-1 * Operating temperature range -40 to +75 °C without derating * High efficiency up to 89% * 3000 VDC I/O-isolation * Protection against overload, and short circuit
Features
* like input under-voltage-lockout, short circuit protection and remote On/Off make this series suitable for almost any application demands and thus facilitate the design-in process. Models Order Code TMR 10-2410WIR TMR 10-2411WIR TMR 10-2412WIR TMR 10-2413WIR TMR 10-2415WIR TMR 10-2421WIR TMR 10-242
